Ford 7.3L Power Stroke HPOP | 1994-1995 | HP004X | Bosch | Remanufactured

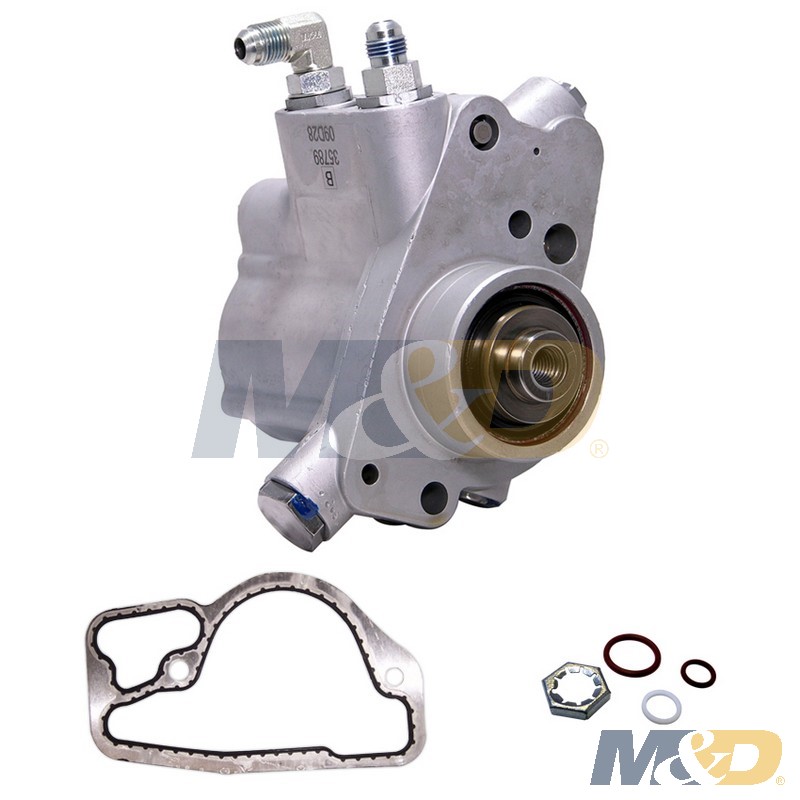

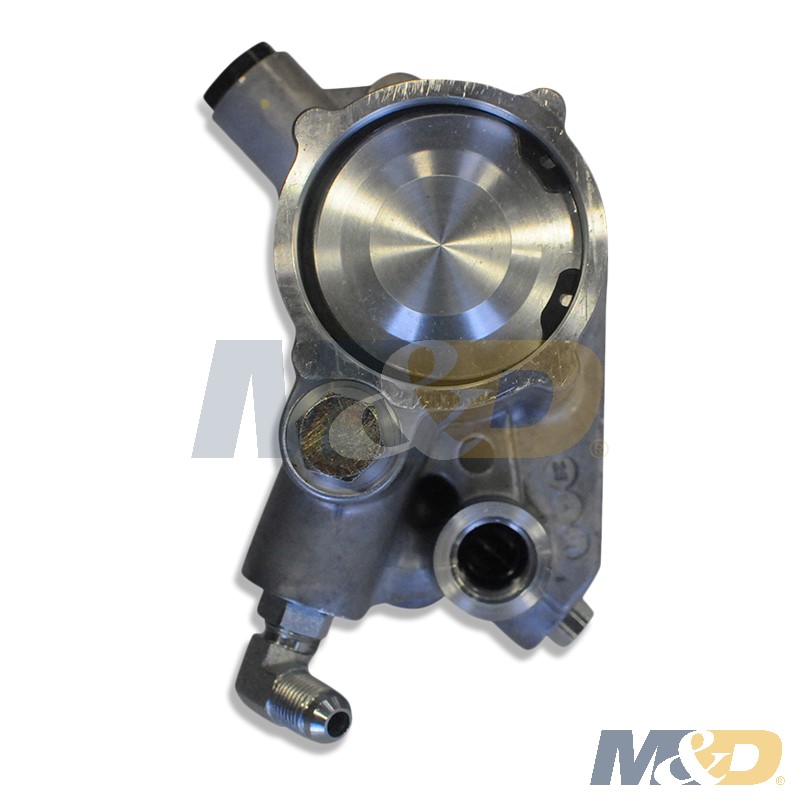

Remanufactured Bosch high pressure oil pump (HPOP) for 1994–1995 Ford 7.3L Power Stroke and Navistar T444E engines, part number HP004X. Ford references it as F4TZ-9A543-BRM. Supplied with a mounting gasket. The HPOP supplies regulated high-pressure oil to the HEUI injectors, which cannot fire without it. This pump fits 1994–1995 engines only — later 7.3L engines use different pumps.

Key Features

• Remanufactured to OE specification and pressure and flow tested before shipping
• Mounting gasket included
• Axial piston swashplate design with seven pistons
• Gear driven from the camshaft gear, not timed to the camshaft or crankshaft
• Covers Ford F-Series and E-Series, and Navistar T444E applications

Specifications

• Part number: HP004X
• Ford OE reference: F4TZ-9A543-BRM
• Component type: High pressure oil pump (HPOP)
• Condition: Remanufactured
• Design: Axial piston, seven piston, 15-degree swash plate
• Fuel system: HEUI
• Engine: Ford 7.3L Power Stroke and Navistar T444E
• Model years: 1994–1995
• Engine serial range: 5,500 to 216,543
• Included: mounting gasket

Compatibility & Fitment

• Engine: Ford 7.3L Power Stroke and Navistar T444E, 1994–1995
• Vehicles: Ford F-250, F-350, F-450, F-550, F-650 and F-750; Ford E-250, E-350 and E-450
• Engine serial number 5,500 to 216,543

Fitment gate — this pump is for 1994–1995 engines only. The 7.3L used several different HPOPs across its production run, and 1996 and later engines take a different pump. Confirm your engine serial number falls within 5,500 to 216,543 before ordering, since 1994 model year trucks span the start of production.

Second fitment gate — early 7.3L pumps up to 1999 use a 15-degree swash plate; 1999 and later pumps use a 17-degree plate with a higher flow rate. They are not interchangeable.

Installation note — make sure the drive gear is fully seated on the pump before fitting the bolt and washer. If the gear is not seated correctly it can bind or slip, producing a no-oil-flow condition and an engine that will not start.

Core return — this is a remanufactured exchange unit and a core return applies. Cores must be serviceable to receive full credit.

Conclusion

This is a remanufactured Bosch high pressure oil pump for 1994–1995 Ford 7.3L Power Stroke and Navistar T444E engines, replacing Ford F4TZ-9A543-BRM and supplied with a mounting gasket. Confirm your engine serial number falls within range before ordering, since the 7.3L used several different HPOPs and they do not interchange.
