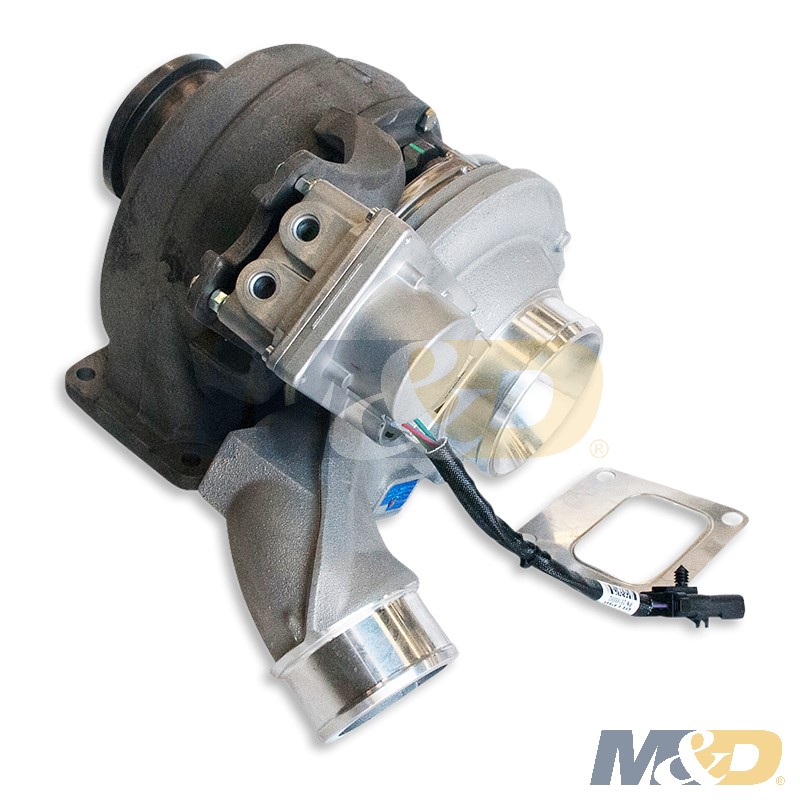

BorgWarner 179030 S300V110 Turbocharger | 2003-2008 Navistar DT466 / DT570, Low Mount | Replaces 1842582C94 | New

New genuine BorgWarner S300V110 turbocharger, BorgWarner 179030, for select 2003–2008 Navistar DT466 (7.6L) and DT570 (9.3L) low-mount applications rated up to 340 horsepower, replacing Navistar 1842582C94 and the earlier BorgWarner 173900. It’s supplied complete with the electronic actuator and has a titanium compressor wheel.

Key Features:

• Complete turbocharger assembly with the electronic actuator installed
• Titanium compressor wheel
• For low-mount DT466 and DT570 applications
• New, outright unit with no core return

Specifications:

• Part number: BorgWarner 179030
• Replaces: BorgWarner 173900; Navistar 1842337C91–C95, 1842582C91–C98, 1870932C91–C94, 5010314R91–R96, 5010580R91, 5010581R91

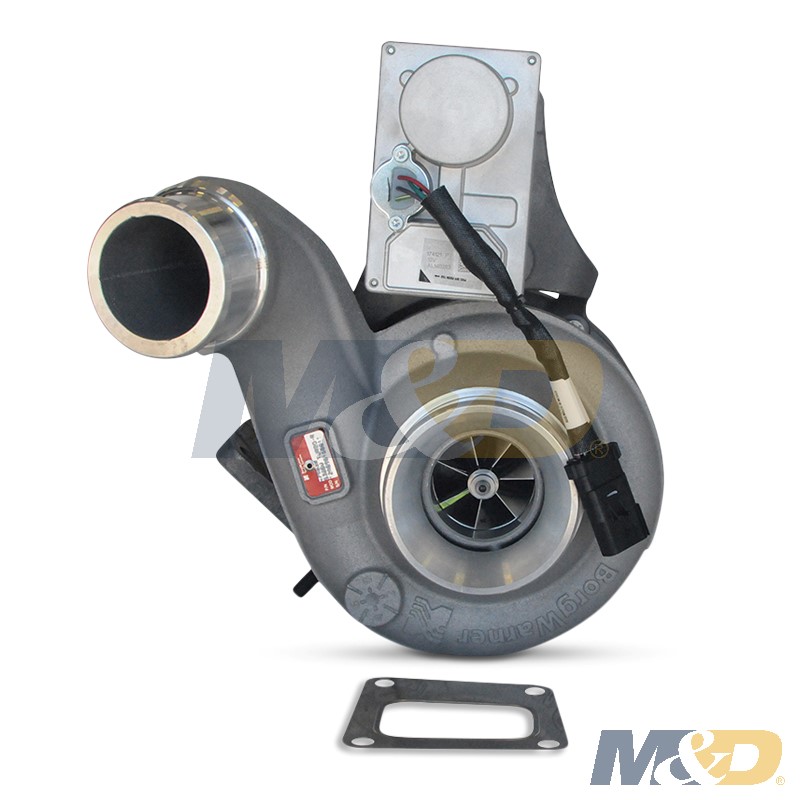

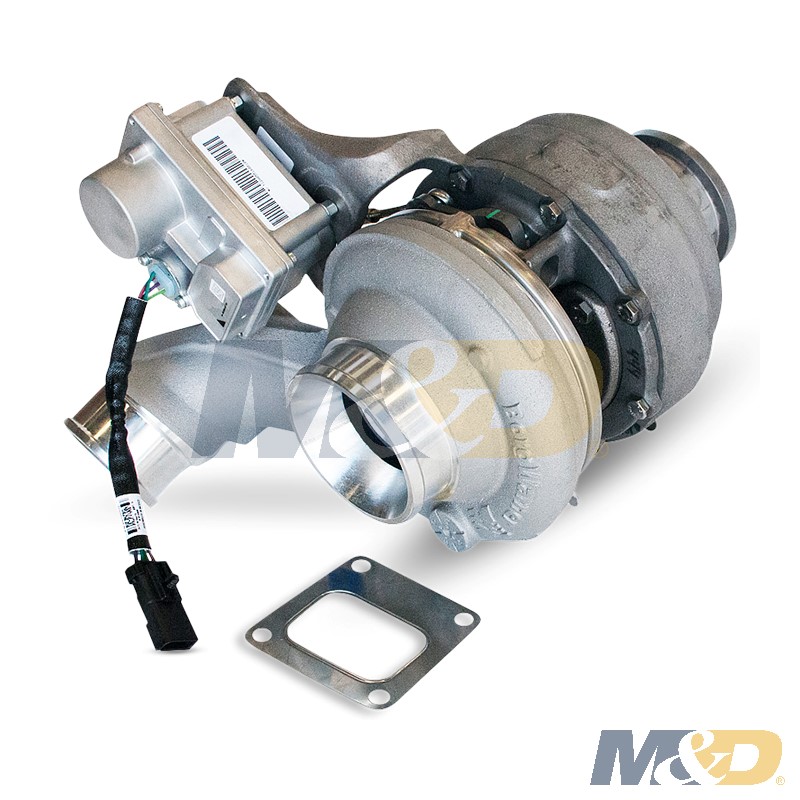

• BorgWarner remanufactured version: 479030
• Brand: BorgWarner
• Condition: New
• Turbo model: S300V110
• Compressor wheel: Titanium
• Actuator: Electronic, included (BorgWarner 175788 / Navistar 5010588R91)
• Engine: Navistar DT466 (7.6L), DT570 (9.3L)
• Mounting: Low mount
• Years: 2003–2008
• Core: None

Compatibility / Fitment:

Fits select 2003–2008 Navistar International DT466 and DT570 low-mount applications rated up to 340 horsepower, originally equipped with one of the Navistar or BorgWarner numbers listed in Specifications.

Two hard fitment gates apply:

Low mount only. This turbocharger is for low-mount DT466 and DT570 applications. Confirm your turbo’s mounting before ordering.

Match the rating and Navistar number. Lower-rated DT466 engines from the same years use a different BorgWarner S300 turbocharger, which we also stock. Read the Navistar or BorgWarner number on your existing turbo and confirm it’s in the list above.

Installation: Fit new mounting, oil supply and drain gaskets, pre-fill the bearing housing with clean engine oil, and prime the oil supply before first start. Connect the electronic actuator’s harness and confirm it operates before running the engine.

Pair with: PAI turbocharger installation kit 431297.

Rebuilding instead of replacing: the CHRA for this turbocharger is BorgWarner 178585, and the electronic actuator kit is BorgWarner 175788.

Other versions available: BorgWarner remanufactured and other remanufactured versions of this turbocharger.

Common interchanges: Navistar 1842337C95, 1842582C94, 5010314R95, 5010581R91; BorgWarner 173900

Conclusion:

A new genuine BorgWarner S300V110 turbocharger for select 2003–2008 Navistar DT466 and DT570 low-mount applications rated up to 340 hp, replacing Navistar 1842582C94 and BorgWarner 173900, supplied with the electronic actuator. Confirm low-mount fitment and your Navistar number before ordering.
