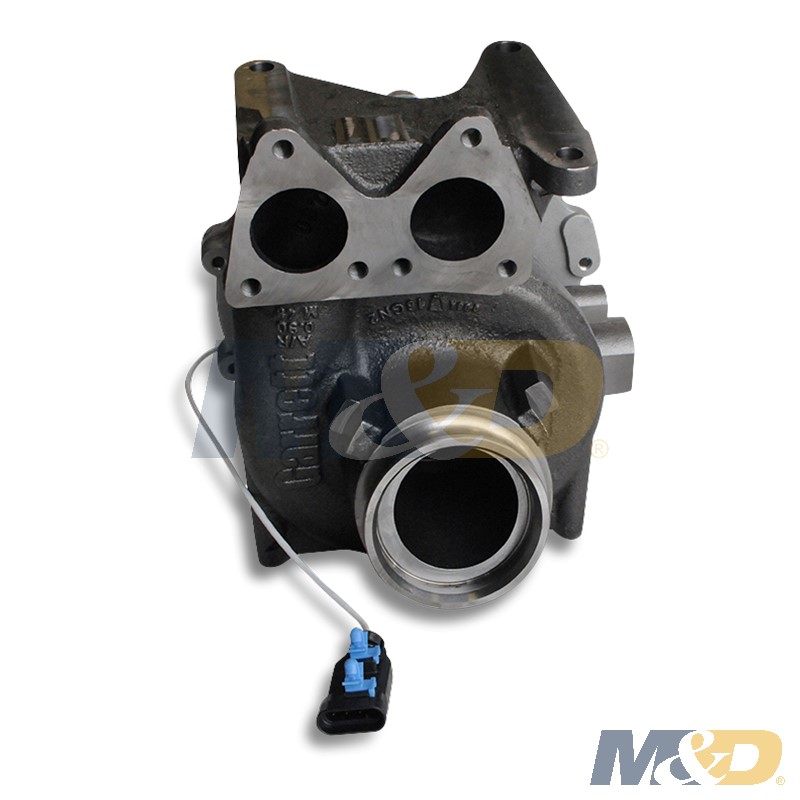

Garrett 848212-9003S Duramax LGH Turbo | 2010-2016 Express / Savana & Cab Chassis | VIN L | Remanufactured

Garrett remanufactured variable-geometry turbocharger, part number 848212-9003S, for the GM 6.6L Duramax LGH — 2010-2016 Chevrolet Express and GMC Savana 2500/3500/4500 vans and LGH-equipped Silverado and Sierra cab-and-chassis trucks. Remanufactured by Garrett, the original equipment turbocharger manufacturer. Replaces GM 12640123 and 12642130.

Key Features:

• Remanufactured by Garrett, the original equipment turbocharger manufacturer
• Variable-geometry GT35-series turbo for the LGH Duramax
• Replaces GM 12640123, 12642130, 12642313 and 12643547

Specifications:

• Part number: 848212-9003S
• Brand: Garrett
• Turbocharger model: GT3583LVA (also listed as GT3582VA)
• Condition: Remanufactured
• Component type: Turbocharger assembly, variable geometry
• Engine: GM 6.6L Duramax LGH
• RPO code: LGH; VIN 8th digit “L”
• Model years: 2010-2016
• GM reference numbers: 12640123, 12642130, 12642313, 12643547, 12632249, 12634299, 12635325
• Garrett reference numbers: 848212-5003S, 785580-0006, 785580-5006, 800563-0002, 800563-5002
• Core: Returnable core required

Compatibility / Fitment:

Fits 2010-2016 Chevrolet Express and GMC Savana 2500, 3500 and 4500 vans with the 6.6L Duramax LGH, and Chevrolet Silverado and GMC Sierra 2500HD and 3500 cab-and-chassis trucks with the LGH.

Hard fitment gate — LGH engine only:

Pickups from the same years use the LML Duramax (VIN code “8”) and a different turbo. Earlier LMM, LLY and LBZ engines use a different turbocharger. Check the RPO list in your glovebox for LGH, or confirm the 8th digit of your VIN is “L.” On cab-and-chassis trucks, also read the number on your existing turbo.

Installation: replace the oil feed and drain lines’ seals and the mounting gaskets, inspect the intake and intercooler for debris from the failed turbo, and confirm the variable-geometry actuator operates freely before start-up.

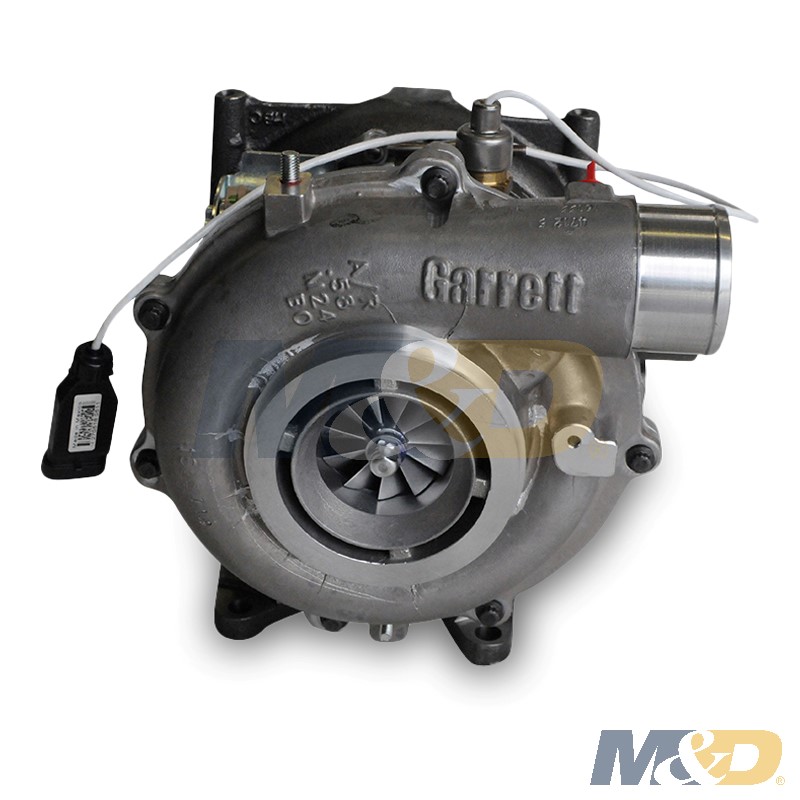

Also available: Garrett new 848212-5003S.

Common interchanges: 12640123, 12642130, 848212-5003S, 785580-0006

Conclusion:

Garrett 848212-9003S is the factory-remanufactured turbo for the 6.6L Duramax LGH in 2010-2016 Express and Savana vans and LGH cab-and-chassis trucks, replacing GM 12640123. Check for RPO LGH or VIN code “L” — LML pickups take a different turbo.
