Freightliner DEF Header | ASPFL-2335 | Hose Bead | Analog | Detroit DD5-DD15 | New

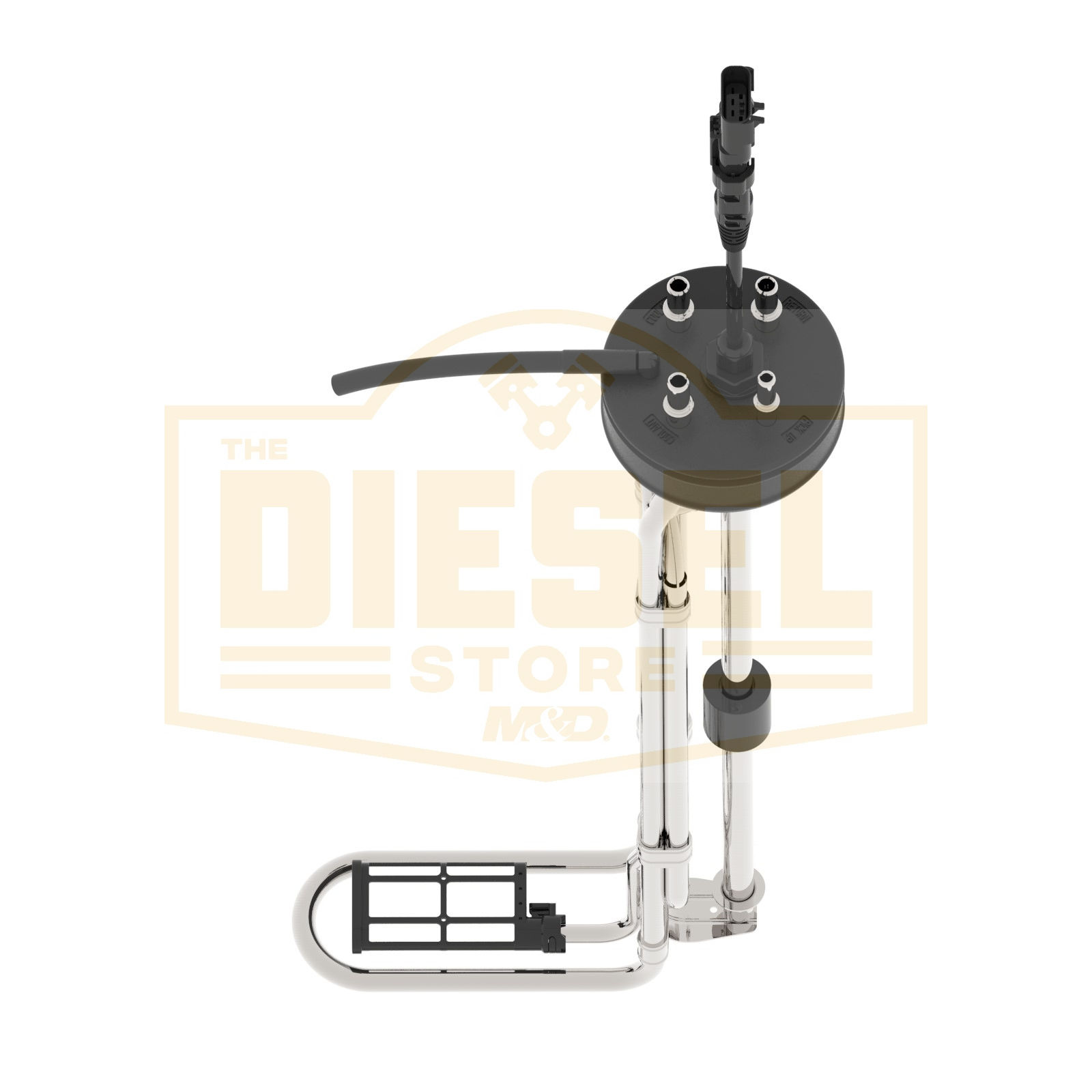

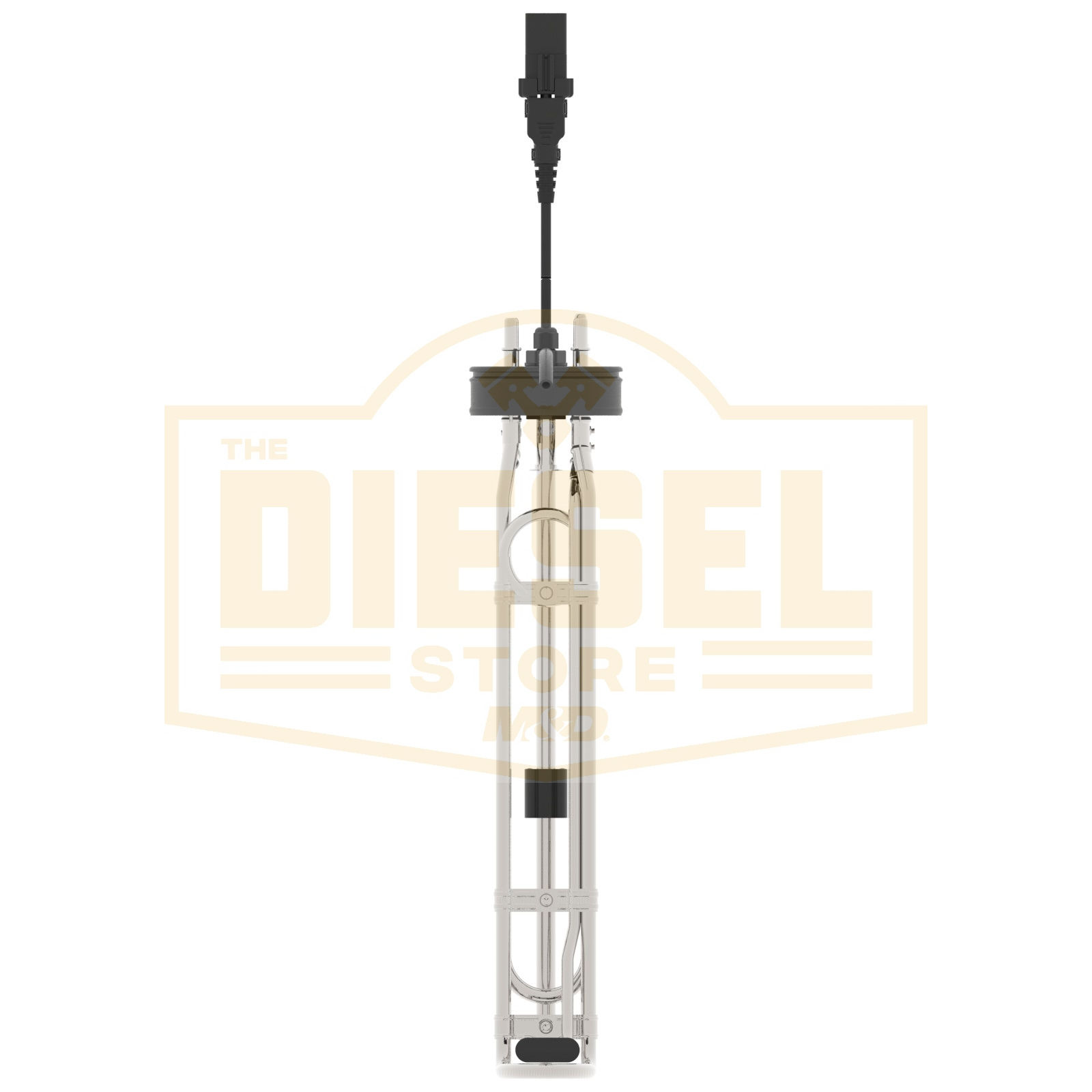

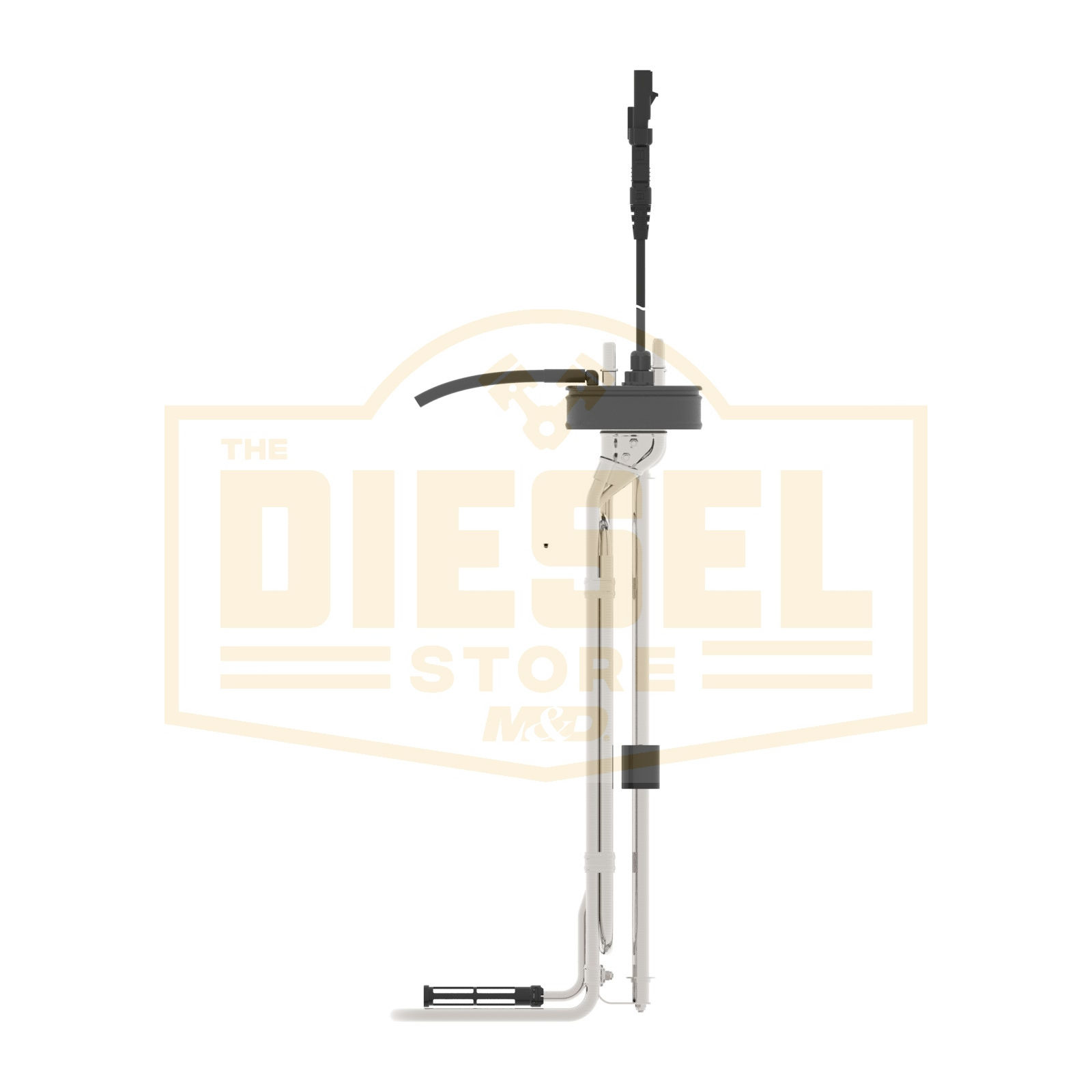

DuraWRX diesel exhaust fluid header, part number ASPFL-2335, for 2014-2024 Freightliner, Western Star and Thomas Built applications with Detroit Diesel DD5, DD8, DD13 and DD15 engines and a 6 gallon DEF tank. Hose bead tank interface, 18 inch height, with analog level and temperature sensor and 70 micron in-tank suction filter. Replaces Freightliner 04-30774-004.

Key Features:

• Hose bead tank interface, secured by hose clamp
• Analog level and temperature sensor
• 70 micron in-tank suction filter
• IP67 rated
• Supplied with DuraWRX installation manual

Specifications:

• Part number: ASPFL-2335
• Brand: DuraWRX
• Component type: DEF header assembly
• Tank interface: Hose bead, 3.15 in (80 mm)
• DEF header height: 18 in
• In-tank filter: 70 micron
• Sensor type: Analog, level and temperature
• Electrical connection: AMP 282106-1
• Maximum current: 300 mA
• Minimum operating voltage: 5 V
• Maximum power: 125 mW
• Operating temperature: −40 to +85 °C
• Ingress protection: IP67
• DEF suction fitting: 5/16 in, SAE J2044
• DEF return fitting: 3/8 in, SAE J2044
• Coolant inlet and outlet fittings: 3/8 in, SAE J2044
• Vent fitting: 1/4 in hose barb
• Overall length: 17.00 in (431.8 mm)
• Flange to connector height: 1.35 in (34.3 mm)
• Foot length: 7.76 in (197.1 mm)
• Harness length: 9.84 in (250 mm)
• Freightliner reference: 04-30774-004
• Weight: 6 lb

Wiring:

• Pin 1: level signal
• Pin 2: level ground
• Pin 3: temperature signal
• Pin 4: temperature ground

Compatibility / Fitment:

Fits 2014-2024 Freightliner, 2021-2023 Western Star 4700 and 4800, and 2017-2024 Thomas Built SAF-T-Liner applications with Detroit Diesel DD5, DD8, DD13 or DD15 engines and a 6 gallon DEF tank. It also replaces Freightliner 04-38113-000.

Three hard fitment gates apply:

Tank interface. Hose bead, secured by a hose clamp. Will not fit six-bolt, SAE flange or bore-seal tanks.

Sensor output. Analog level and temperature. Other headers in this range use digital CANbus.

Engine. This is the Detroit version. The Cummins equivalent is a separate part replacing Freightliner 04-30774-001.

Installation — from the DuraWRX manual:

Tools required are a socket wrench, hex screwdriver, flathead screwdriver and water.

Orient the foot of the header away from the filler port. Use water as a lubricant on insertion and do not force it. Check the base sits flush with the tank rim before clamping.

Torque the header hose clamp to 44 ±4 lbf-in and the tank mounting bracket bolts to 128 lbf-ft (174 N-m).

Hose routing: the DuraWRX header places its DEF and coolant ports differently from the Freightliner original. If the existing hoses will not reach, remove the hose bracket and cut the two zip tie bundles, then loop the hoses around the opposite side of the tank.

Common interchanges: 04-38113-000, 04-30774-004

Conclusion:

DuraWRX ASPFL-2335 is the hose bead DEF header with analog sensor and 70 micron filter for 2014-2024 Freightliner, Western Star and Thomas Built applications with Detroit DD5 through DD15 engines, replacing Freightliner 04-30774-004. Confirm your tank interface, sensor type and engine before ordering.
