Racor RK19671 T-Handle Vacuum Gauge Kit | Turbine 500/900/1000 | Replaces RK23284

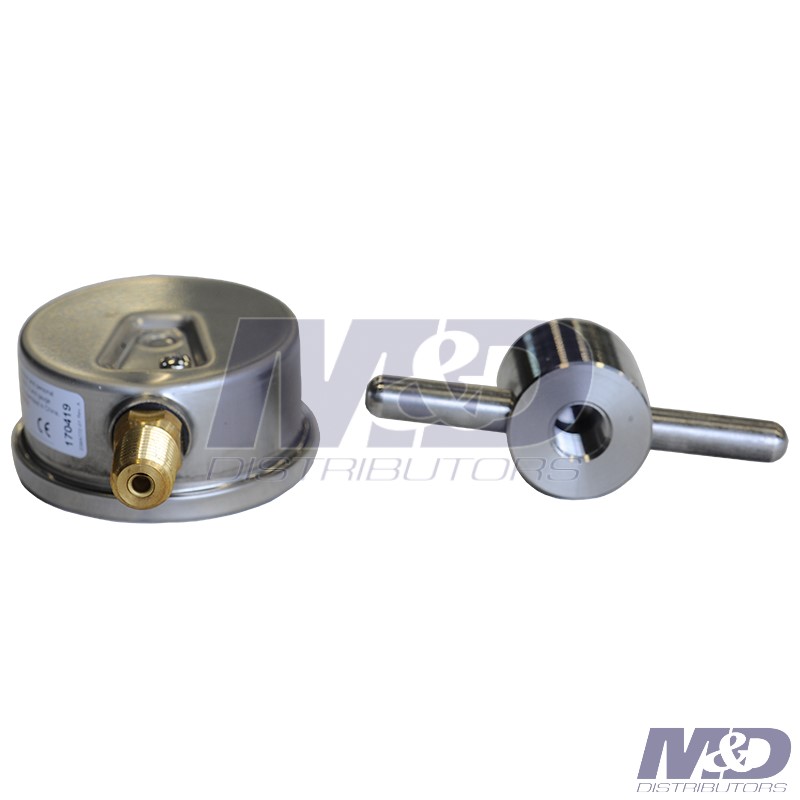

New genuine Parker Racor RK19671 stainless-steel T-handle vacuum gauge kit for Racor Turbine Series fuel filter/water separators. It replaces the filter's T-handle with a built-in restriction gauge (–30 to 0 "Hg) so you can read filter condition at a glance and change elements at the right time instead of guessing. Fits 500 (built after 2002), 900, and 1000 Turbine housings, including UL-listed marine (MA) models.

Key Features:

• Genuine Racor T-handle vacuum/restriction gauge — shows filter loading in real time
• Reads vacuum –30 to 0 "Hg; installs in place of the existing T-handle, no tools required
• Stainless-steel case and face, 2.5" diameter for easy reading
• Pressure-relief valve compensates for ambient barometric changes; polycarbonate lens; internal overpressure locking mechanism
• Internally sealed at the fitting, lens, and relief valve to resist contamination
• Fits Racor Turbine 500 (post-2002), 900, and 1000 series, including marine (MA) models

Specifications:

• Base part number: RK19671
• Component type: T-handle vacuum/restriction gauge kit
• Condition: New (genuine Parker Racor)
• Gauge range: –30 to 0 "Hg (vacuum)
• Case: stainless steel, 2.5" diameter
• Gauge thread: 1/4-18 NPTF
• T-handle thread (into filter center tube): 9/16-18 UNF-2A
• Fits: Racor Turbine 500 (after 2002), 900, 1000 — including UL marine (MA) models

Compatibility / Fitment:

• Racor Turbine Series fuel filter/water separators: 500FG (manufactured after 2002), 900, and 1000 (including 900FV/1000FV and marine MA/VMA versions)
• Fitment gate (important): 500FG housings made before January 2002 lack the center-tube thread depth to accept this gauge — if the existing T-handle's threaded shaft is under 1" long, the housing predates 2002 and won't fit
• Installs in place of the standard T-handle; verify your housing is a Turbine Series unit before ordering

Cross-References / Interchange:

• Fits Racor Turbine housings including 791000FV10 (1000FV) and other 500 post-2002 / 900 / 1000 assemblies

Conclusion:

The Racor RK19671 is a new genuine stainless-steel T-handle vacuum gauge kit for Racor Turbine Series fuel filters. It gives you at-a-glance filter-restriction monitoring to time element changes precisely — a direct, tool-free upgrade for 500 (post-2002), 900, and 1000 Turbine housings, marine models included.
