BorgWarner 1496-988-0000 S400SX 78mm Turbo | 1.32 A/R Non-Wastegated | Caterpillar 3406E / C15 / C16 | New

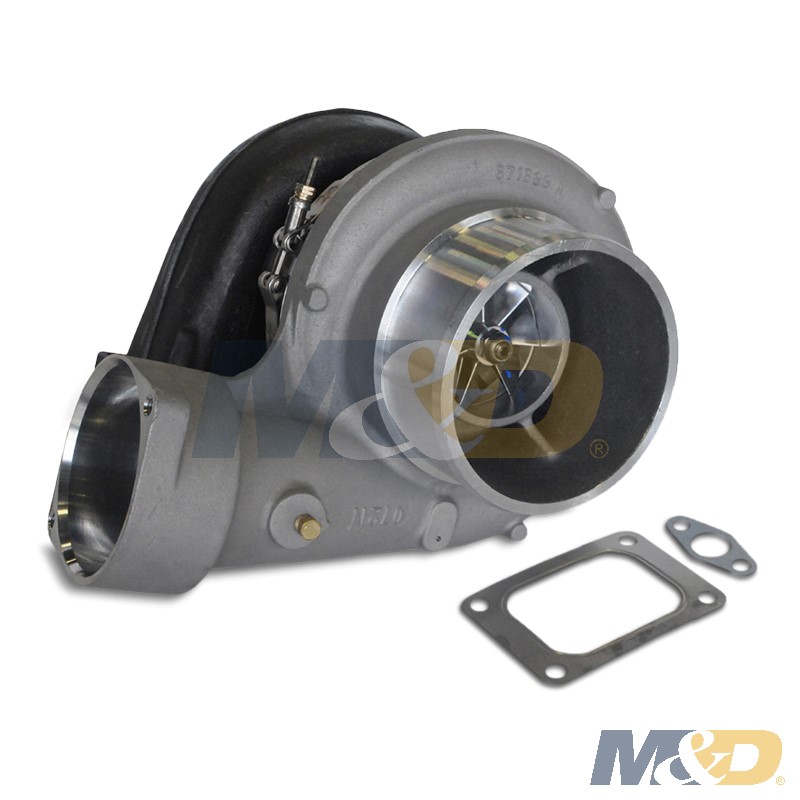

Genuine new BorgWarner S400SX-series performance turbocharger, part number 1496-988-0000 — the “78 / 1.32” or “Big CAT” turbo — for single-turbo Caterpillar 3406E, C15 and C16 engines. 78 mm forged milled compressor wheel, 1.32 A/R non-wastegated turbine housing and 360° thrust bearing. A performance upgrade over the stock turbo.

Key Features:

• Genuine BorgWarner S400SX-series turbo (listed as S430SX / S410SX)
• 78 mm inducer, 105 mm exducer forged milled compressor wheel (stock wheels are cast)
• 360° thrust bearing (stock bearing is 270°)
• 1.32 A/R non-wastegated T6 turbine housing
• Direct bolt-on for single-turbo 3406E and C15

Specifications:

• Part number: 1496-988-0000 (14969880000)
• Brand: BorgWarner
• Turbocharger model: S400SX series (S430SX / S410SX)
• Condition: New
• Component type: Complete turbocharger, non-wastegated
• Compressor wheel: 78 mm / 105 mm, forged milled
• Turbine housing: 1.32 A/R, non-wastegated
• Thrust bearing: 360°
• Engine: Caterpillar 3406E (14.6 L), C15, C16 — single turbo
• Serial prefixes: C15 — 5EK, 6NZ, MBN; 3406E — 1LW, 2WS, 6TS
• Weight: 59 lb

Compatibility / Fitment:

Bolts on to single-turbo Caterpillar 3406E, C15 (including 6NZ and MBN) and C16 engines.

Two hard fitment gates apply:

Not a direct fit on the C15 ACERT. The C15 ACERT uses two turbochargers in series. Fitting a single S400 to an ACERT requires a single-turbo conversion (manifold and related parts) — this turbo alone won’t bolt on.

Match the version you need. BorgWarner builds several S400 Caterpillar turbos, including an 80 mm version with a 1.65 A/R wastegated housing. Confirm the compressor size, A/R and wastegate requirement for your build.

Installation: this is a performance turbocharger — match engine fueling and calibration to the turbo and monitor exhaust gas temperatures. Use new exhaust manifold gaskets and a new compressor housing O-ring, and prime the turbo with clean oil before start-up.

Conclusion:

BorgWarner 1496-988-0000 is the genuine 78 mm / 1.32 A/R non-wastegated S400 turbo for single-turbo Caterpillar 3406E, C15 and C16 engines. Not a direct fit on the twin-turbo C15 ACERT.
