Caterpillar C13 Inframe Overhaul Kit | PAI C13101-017 | 2-Piece Piston, STD Bearings

PAI inframe overhaul kit, part number C13101-017, for Caterpillar C13 engines. Supplied with two-piece pistons and standard-size main and connecting rod bearings. This kit is engine serial number and arrangement specific — provide your serial number when ordering, as kits may be assembled to your engine's configuration.

Key Features

• Six complete cylinder kits — pistons, liners, rings, wrist pins, retainers and seals
• Standard main bearing set and six connecting rod bearings
• Upper gasket kit and oil pan gasket kit
• Two thermostats included
• Thrust washers included
• Two-piece piston configuration
• Assembled in an ISO 9001 certified facility
• Backed by PAI's 2-year warranty

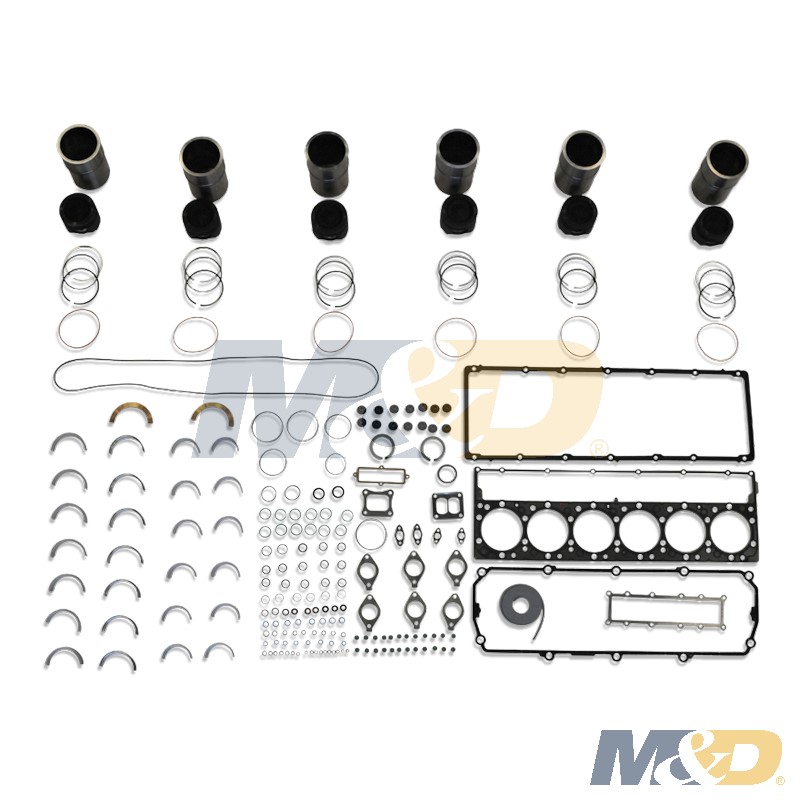

Kit contents

• (6) Cylinder kits — pistons, liners, rings, wrist pins, retainers, seals
• (1) Upper gasket kit — Caterpillar 3612581
• (1) Standard main bearing set — Caterpillar 2436717
• (6) Connecting rod bearings — Caterpillar 1161089
• (1) Oil pan gasket kit
• (1) Thermostat — Caterpillar 7C3095
• (1) Thermostat — Caterpillar 2848264
• Thrust washers
• Engine hang tag

Specifications

• Part number: C13101-017
• Component type: Inframe overhaul kit
• Condition: New
• Piston configuration: Two-piece
• Bearing sizes: Standard main, standard connecting rod
• Engine: Caterpillar C13, 12.5 L
• Net weight: approximately 167 lb — ships motor freight
• Sold as: kit

Warranty

Backed by PAI's 2-year warranty against defects in material and workmanship. Also available in PAI's High Performance line as C13101-017HP, which carries a 3-year warranty and ceramic thermal barrier coated pistons.

Compatibility & Fitment

• Engine: Caterpillar C13, 12.5 L
• Serial prefixes: KCB, JAM
• Equipment: Class 8 on-highway trucks and industrial equipment powered by the C13

Ordering gate — this kit is engine serial number and arrangement number specific, and may be custom assembled to your engine. Provide your engine serial number and arrangement number with your order.

Second fitment gate — this kit supplies two-piece pistons. C13 engines built with one-piece pistons take a different kit. Confirm your piston configuration before ordering.

Third fitment gate — this kit contains standard-size main and connecting rod bearings. If your crankshaft has been reground undersize, you need a kit with matching undersize bearings.

Conclusion

This is the PAI inframe overhaul kit for the Caterpillar C13 with two-piece pistons and standard-size bearings, covering six cylinder kits, bearings, gasket kits and thermostats. It is serial number and arrangement specific — call with your engine serial number, and confirm your piston configuration and bearing sizes before ordering.
