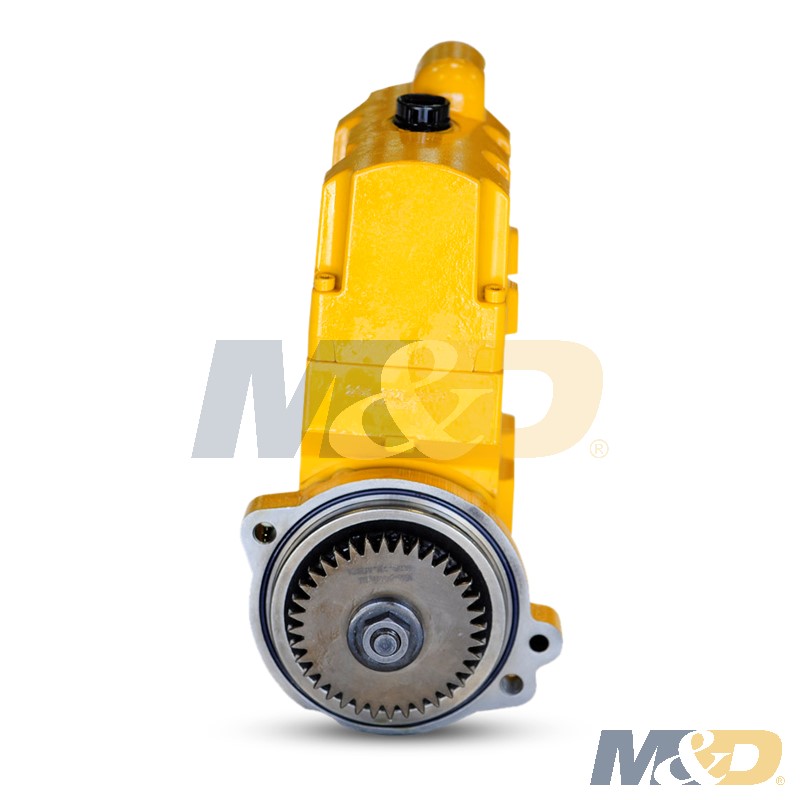

Caterpillar C7 HEUI High-Pressure Oil Pump | 83mm Gear, Short Nose | Replaces 10R-8899 / 319-0677 | Remanufactured

Remanufactured HEUI high-pressure oil pump for Caterpillar C7 engines, 83 mm gear, short nose, replacing Cat Reman 10R-8899 and Caterpillar 319-0677. Supplied with the fuel transfer (lift) pump and mounting gasket. The pump supplies the high-pressure oil that actuates the HEUI injectors.

Specifications:

• Replaces Caterpillar: 10R-8899 (Cat Reman), 319-0677
• Condition: Remanufactured
• Component type: HEUI high-pressure oil pump
• Drive: 83 mm gear, short nose
• Engine: Caterpillar C7
• Caterpillar reference numbers: 10R-3144, 10R-1308, 10R-6327, 10R-7147, 228-5898, 254-4357, 295-4777, 304-0677, 312-0677, 319-0622
• Included: Fuel transfer (lift) pump, Caterpillar 326-1006; mounting gasket
• Weight: 26.2 lb
• Core: Returnable core required

Compatibility / Fitment:

Fits Caterpillar C7 HEUI engines, including:

• C7 truck engines (2004-2009)
• C7 petroleum and industrial engines
• 950H and 962H wheel loaders; 324D, 325D and 329D excavators; CL210B; 573 forest machine

Fitment gate — match the Caterpillar number:

Caterpillar’s HEUI engines use different high-pressure oil pumps by engine and drive. Read the Caterpillar number on your existing pump and confirm it appears in the list above before ordering.

Installation: use the supplied mounting gasket, transfer the fuel lines and fittings, prime the fuel system, and check for oil leaks at the pump after start-up. Caterpillar also offers this pump as kit 20R-6642 with a new filter, elbow and hose.

Other versions available: genuine Cat Reman 10R-8899.

Common interchanges: 10R-8899, 319-0677, 10R-3144, 20R-6642, 254-4357

Conclusion:

This remanufactured C7 HEUI high-pressure oil pump replaces Cat 10R-8899 and 319-0677, with the fuel transfer pump and mounting gasket included. Match your Caterpillar number before ordering.
