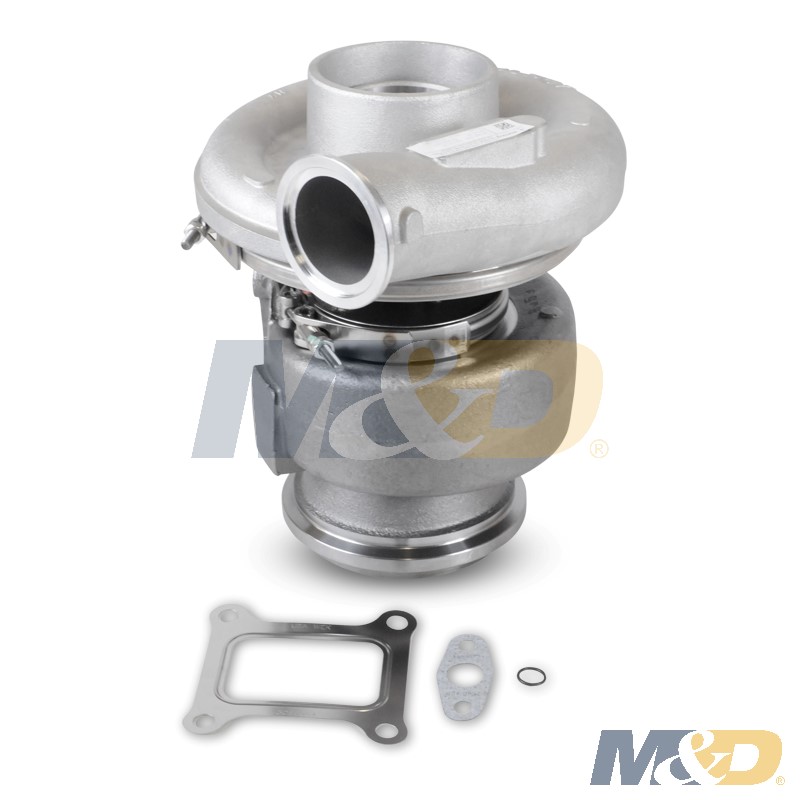

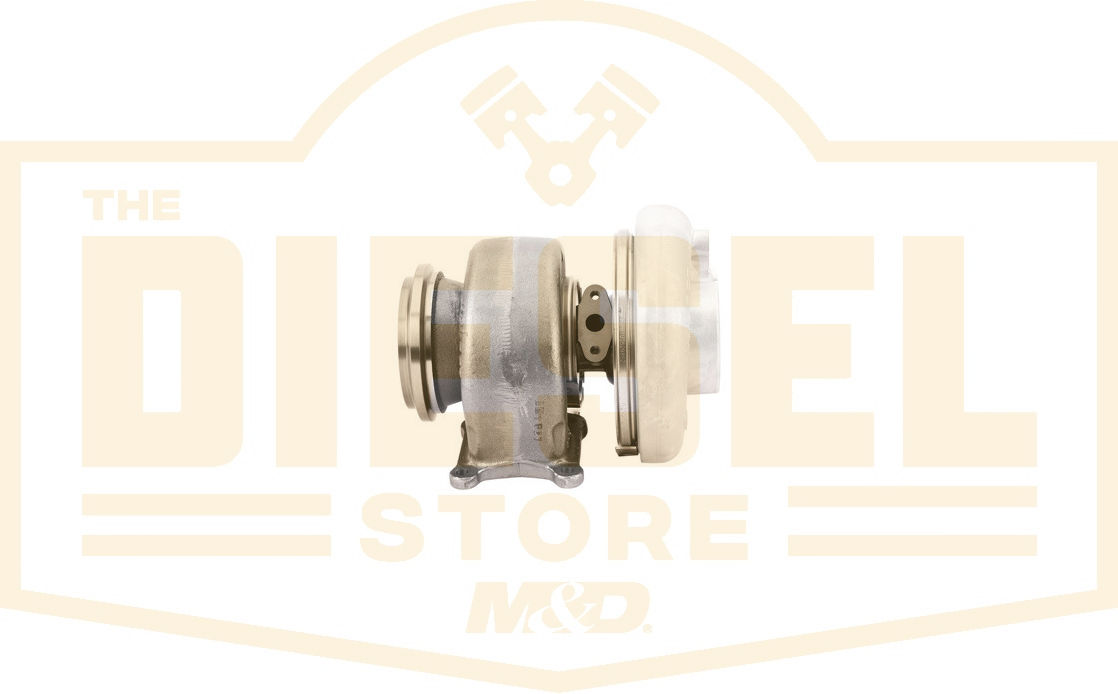

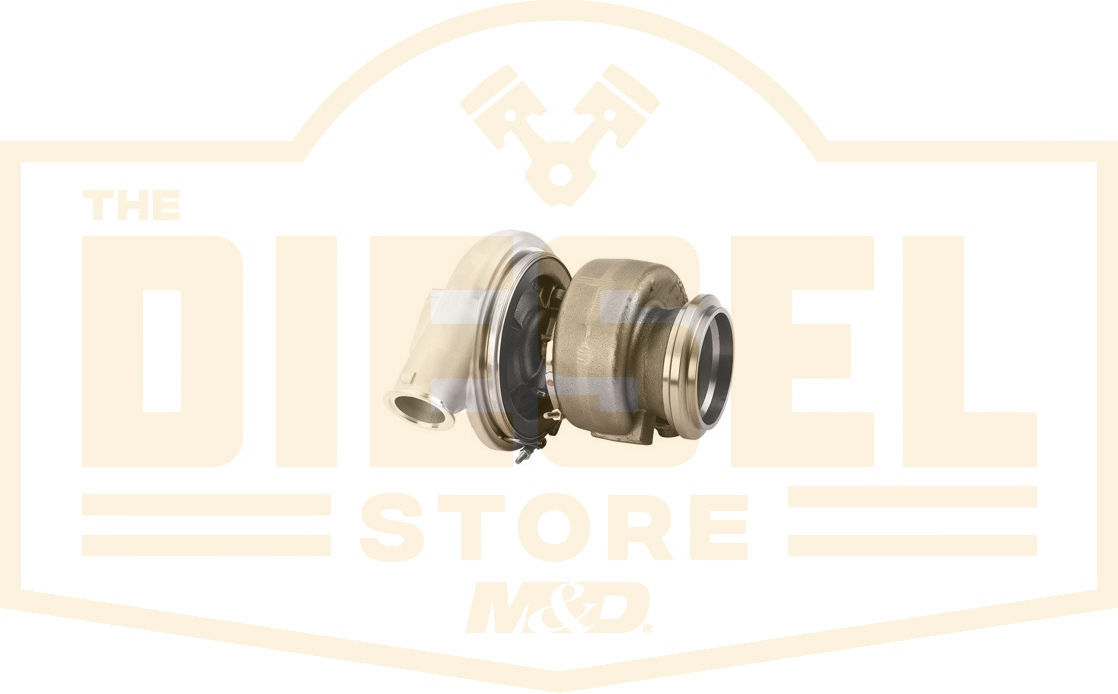

Holset HX55 Turbocharger | 4033813 | Cummins ISM & M11 | Non-Wastegated | New

Genuine new Holset HX55 turbocharger, part number 4033813, for Cummins ISM, ISME and M11 11.0L engines. Non-wastegated configuration. Supplied with gasket set 3800279. Supersedes Holset 3590044 and replaces Cummins 3800471.

Key Features:

• Genuine new Holset unit, not remanufactured
• Holset HX55, non-wastegated fixed-geometry configuration
• Gasket set 3800279 included — non-divided mounting gasket, oil drain gasket and O-ring seal
• Covers Cummins 3803938, 3800471, 3590044, 3536996 and 4039173
• No core charge and no core return required

Specifications:

• Part number: 4033813
• Brand: Holset
• Turbocharger model: HX55, designation HX55-E9861L/H22E11D
• Condition: New
• Component type: Complete turbocharger assembly
• Boost control: Non-wastegated, fixed geometry
• Engine: Cummins ISM, ISME and M11, 11.0 L
• Emissions era: Euro 2 and Euro 3
• Model years: 1999-2012
• Cummins reference numbers: 3536149, 3536995, 3536996, 3590044, 3590045, 3593606, 3593607, 3599045, 3780171, 3788312, 3800471, 3803938, 3804503, 4039173, 4046031, 2834419
• Weight: 43 lb
• Included: Gasket set 3800279 — mounting gasket 3088984 (non-divided), oil drain gasket 3899343, O-ring seal 3037537

Compatibility / Fitment:

Fits 1999-2012 Cummins ISM, ISME and M11 11.0L engines, Euro 2 and Euro 3, in heavy-duty truck, bus and industrial applications — including International and Freightliner platforms and Cummins Delta and Alpha Plus. CPL 2608.

Two hard fitment gates apply:

Non-wastegated. This is the non-wastegated, fixed-geometry HX55. Variable-geometry and wastegated units on this platform are different turbochargers. Confirm which your engine uses before ordering.

Turbine housing type. The mounting gasket supplied is the non-divided type. If your exhaust manifold uses a divided turbine housing, a different mounting gasket is required.

Read the part number from the nameplate on your existing turbocharger and match it against the cross-reference list before ordering. If your number is not listed, contact us before purchasing.

Severe duty applications: for severe duty service, Cummins specifies 4038846 in place of this turbocharger.

Rebuilding instead of replacing: the CHRA for this turbocharger is 3580726 and the repair kit is 3580762.

Common interchanges: 3803938, 3800471, 3590044, 3536996

Conclusion:

Holset 4033813 is the genuine new non-wastegated HX55 turbocharger for Cummins ISM, ISME and M11 11.0L engines, supplied with gasket set 3800279 and carrying no core charge. Confirm your engine uses a non-wastegated turbocharger and a non-divided turbine housing before ordering.
