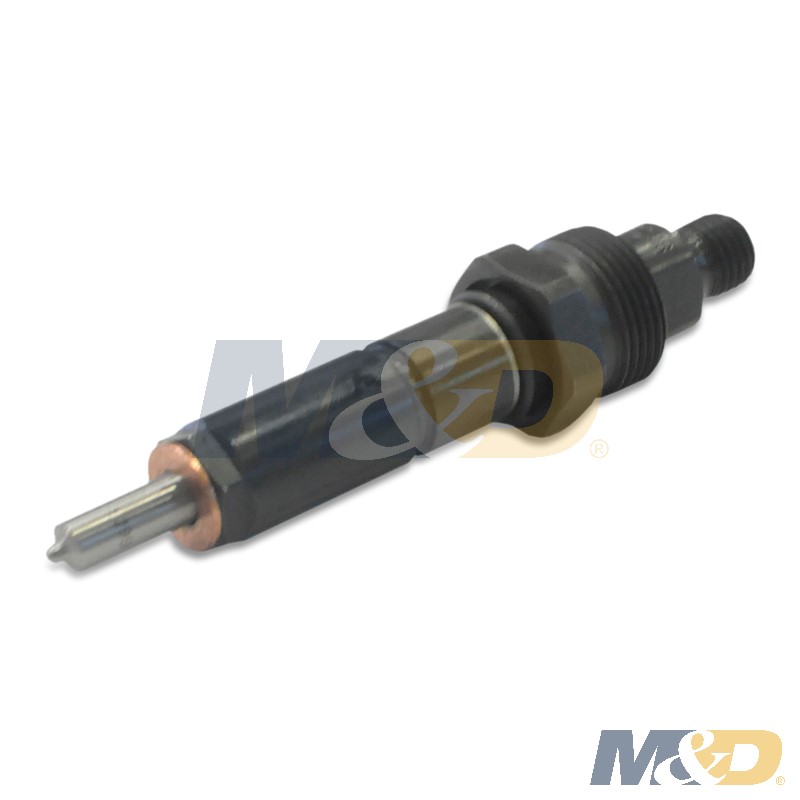

Bosch 0432131841 Injector | Cummins 6BTA & 4BT | 7mm Tip | New

Genuine new Bosch fuel injector, part number 0432131841, for Cummins 6BTA 5.9L and 4BT 3.9L B Series engines with the 7mm injector tip. Body KDAL59P7 with nozzle 0433171205. Replaces Cummins 3802325, 3919298, 3802175 and 3802039, and is the current replacement for earlier 9mm-tip injectors when used with sleeve 3919358. Fitment is gated by CPL. Sold individually; the 6BTA takes six.

Key Features:

• Genuine new Bosch, the original equipment supplier for this fuel system
• 7mm nozzle tip — Cummins' current B Series specification
• Body KDAL59P7, nozzle 0433171205
• Replaces seven Cummins numbers and supersedes the 9mm-tip injectors with sleeve 3919358
• Sold individually; six required for a full 6BTA set, four for a 4BT

Specifications:

• Part number: 0432131841
• Bosch published format: 0 432 131 841
• Brand: Bosch
• Condition: New
• Component type: Fuel injector, mechanical
• Nozzle tip: 7 mm
• Holder body: KDAL59P7
• Nozzle: Bosch 0433171205
• Engine: Cummins 6BTA 5.9L, 4BT and 4BTA 3.9L
• Cummins reference numbers: 3802039, 3802175, 3802325, 3902980, 3914471, 3919298, 3802093
• Komatsu reference: 6736-11-3130
• Weight: 0.48 lb
• Sold as: Each

Compatibility / Fitment:

Fits Cummins 6BTA 5.9L and 4BT 3.9L engines in Dodge Ram 12-valve, industrial, agricultural and construction applications, including Komatsu PC220LC-6, Kobelco SK270LC, Kawasaki 70Z2, Massey Ferguson 8560 and Timberjack 450. CPL 599, 698, 834, 1518, 1523, 1876 and 2050.

Two hard fitment gates apply:

CPL. The B Series was built across many ratings. Confirm your CPL from the engine dataplate against the list above. If your CPL is not listed, contact us before ordering.

Injector tip size — 7mm or 9mm head. Cummins changed the B Series cylinder head from a 9mm injector bore to 7mm in 1990 to strengthen the head. This injector has the 7mm tip. If your engine has the earlier 9mm head, this injector still fits — but you must install adapter sleeve Cummins 3919358, one per injector. The sleeve converts the bore and seals the injector; replace it whenever the injector is removed. Cummins no longer supplies 9mm injectors.

Injector service parts, available separately: gland nut 2433462041, nozzle nut 2433314182, intermediate disc 2430134023.

Quantity: sold individually. Six for a 6BTA, four for a 4BT.

Common interchanges: 3802325, 3919298, 3802175, 6736-11-3130

Conclusion:

Bosch 0432131841 is the genuine new 7mm-tip injector for Cummins 6BTA 5.9L and 4BT 3.9L engines, replacing Cummins 3802325 and 3919298 and superseding the discontinued 9mm injectors. Match your CPL, and if your engine has a 9mm head, order adapter sleeve 3919358 with each injector.
