Garrett 758204-5007S GTA4508V VGT Turbocharger | Detroit Series 60 14.0L EGR, 515 HP | Replaces 23534361 | New

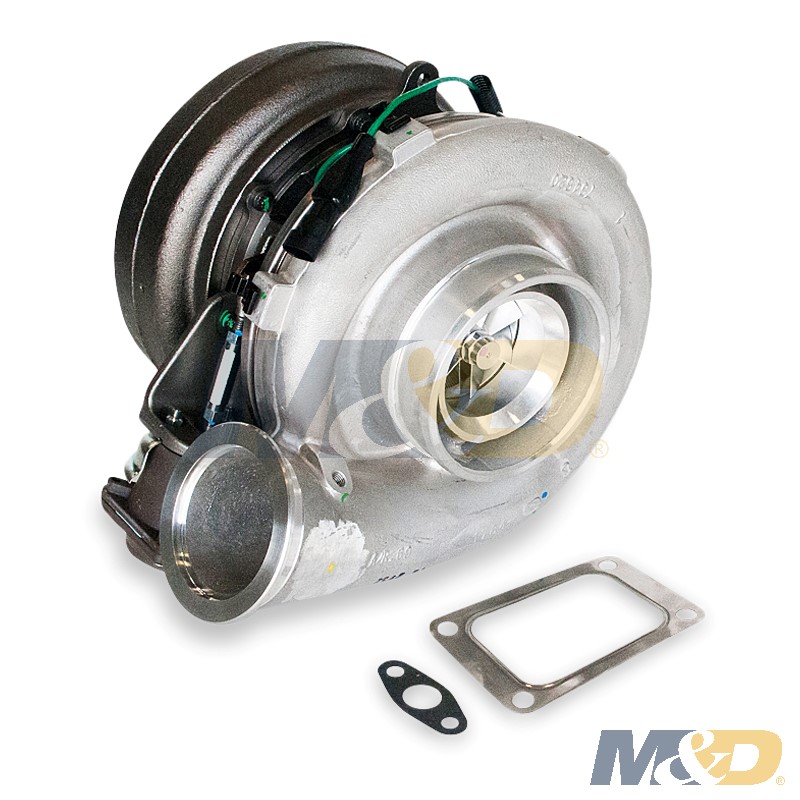

Genuine new Garrett GTA4508V variable geometry turbocharger, part number 758204-5007S, for the Detroit Diesel Series 60 14.0L EGR engine rated 515 HP. It replaces Detroit 23534361, 23533361, and 23534356. It's supplied with the actuator, a two-wire turbo speed sensor (706004-0015), and the turbo-to-exhaust-manifold and oil drain flange gaskets. The two oil drain tube O-rings are not included.

Kit Contents:

• 1 × turbocharger with actuator
• 1 × turbo speed sensor, two-wire (Garrett 706004-0015)
• 1 × turbo-to-exhaust-manifold gasket (Detroit 8929529)
• 1 × oil drain flange gasket (Detroit 8929285)

Key Features:

• Genuine new Garrett GTA4508V (GTA45) VGT turbocharger
• For the Detroit Series 60 14.0L EGR, 515 HP
• Actuator, two-wire speed sensor, and mounting gaskets included
• Replaces Detroit 23534361, 23533361, and 23534356

Specifications:

• Part number: 758204-5007S
• Replaces: Detroit Diesel 23534361, 23533361, 23534356 (and E / R versions); Garrett 758204-0007, 752389-0007, 752389-5007
• Brand: Garrett
• Condition: New
• Turbo model: GTA4508V (GTA45), variable geometry
• Speed sensor: Two-wire, Garrett 706004-0015 (included)
• Included: Actuator; turbo-to-exhaust-manifold gasket 8929529; oil drain flange gasket 8929285
• Not included: Oil drain tube O-rings (2 required)
• Clamp: Garrett 446401-0925
• Engine: Detroit Diesel Series 60, 14.0L EGR, 515 HP

Compatibility / Fitment:

Fits Detroit Diesel Series 60 14.0L EGR engines rated 515 HP using turbocharger 23534361, 23533361, or 23534356, in Freightliner, Kenworth, Peterbilt, Western Star, and other trucks and coaches with this engine. Match the Detroit or Garrett number on your existing turbo before ordering.

Hard fitment gate — rating and speed sensor: Detroit used several GTA45 turbos on the Series 60 EGR, and they look alike:

• 14.0L 515 HP: this turbo, 758204-5007S (Detroit 23534361), with a two-wire speed sensor
• 14.0L 500 HP: Garrett 758160-5007S (Detroit 23534775), same turbo with a three-wire speed sensor
• 12.7L 455 HP: Garrett 758204-5006S (Detroit 23534360)

Match the Detroit number, and check whether your speed sensor plug is two-wire or three-wire, before ordering.

Before you order — oil drain tube O-rings: The two oil drain tube O-rings aren't included because two different versions are used: brown (Detroit 23530682) or orange (Detroit 23532326). Check which your engine uses and order two.

Installation note: Install the supplied gaskets, new oil drain tube O-rings, and new oil supply and return lines where needed. Pre-fill the bearing housing with clean oil before first start, confirm the actuator operates freely, and follow Detroit's torque specifications.

Other conditions available: A Garrett remanufactured version (758204-9007S) and a BorgWarner new replacement (5784-988-2005) are also available.

Common interchanges: 23534361, R23534361, E23534361, 23533361, 23534356, 758204-0007, 758204-5007, 758204-9007, 752389-0007, 752389-5007, 752389-0002, 752389-5002, 5784-988-2005

Conclusion:

A genuine new Garrett 758204-5007S GTA4508V turbocharger for the Detroit Series 60 14.0L EGR 515 HP, replacing Detroit 23534361, with the actuator, two-wire speed sensor, and mounting gaskets included. Order the oil drain tube O-rings separately, and match your rating and speed sensor before ordering.
