Racor 900FV10 Single Turbine Fuel Filter Water Separator | 90 GPH 10 Micron | New

New Parker Racor 900FV10 Turbine V-Series fuel filter/water separator — a single-turbine assembly rated at 90 GPH with 10-micron Aquabloc Synergy filtration. Its three-stage design removes water and particulates from diesel fuel, with two-inlet/two-outlet ports, an integrated shut-off valve, and a clear collection bowl. It's the current replacement for the older 900FH30/900FH10.

Key Features:

• 900FV single-turbine assembly — diesel fuel filtration and water separation
• 90 GPH (341 LPH) flow rate
• 10-micron Aquabloc Synergy media (98% efficiency), three-stage water/particulate removal
• Two inlet and two outlet ports for flexible plumbing in any configuration
• Integrated shut-off valve — eliminates separate upstream valves and manifolds
• Clear collection bowl for visual water/contaminant inspection

Specifications:

• Base part number: 900FV10
• Product line: Racor Turbine V-Series, 900FV (single turbine)
• Component type: Fuel filter / water separator assembly
• Condition: New
• Manufacturer: Parker Racor
• Flow rate: 90 GPH (341 LPH)
• Micron rating: 10 micron (98% efficiency)
• Service element: 2040V10 (10 micron)
• Ports/connection: 2 inlet / 2 outlet, 1-5/16"-12 UN-2B (SAE J1926-1); adapters supplied
• Bowl: clear engineering plastic
• Maximum head pressure: 15 psi
• Dimensions: approx. 11.5" H × 4.2" W × 7.5" D; ~4.5 lb

Compatibility / Fitment:

• Diesel fuel systems requiring up to 90 GPH — mobile, industrial, and land-based applications
• For diesel fuel conditioning (not for gasoline systems)

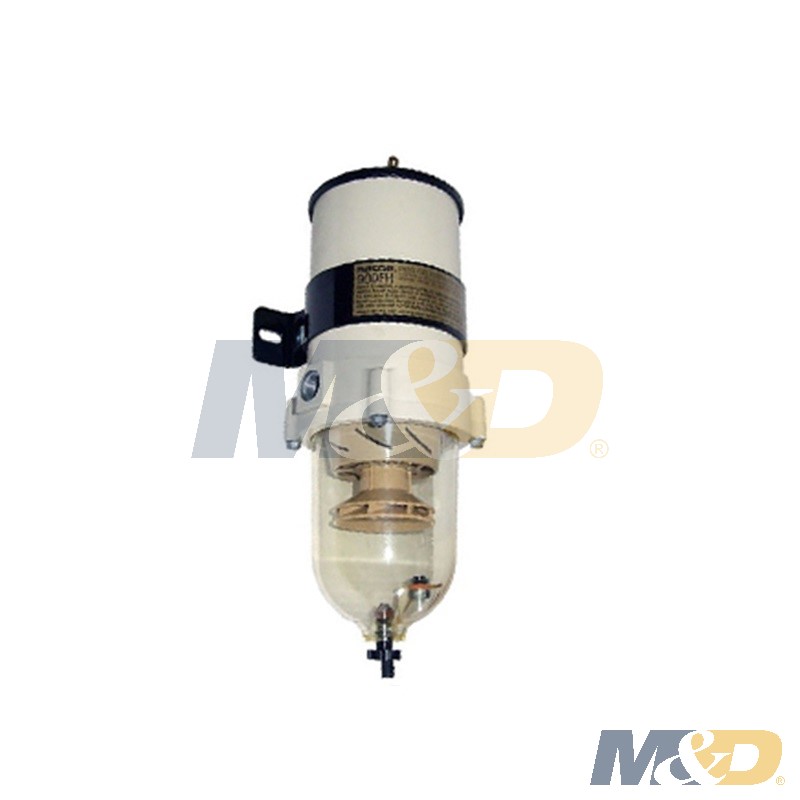

• Replaces the earlier 900FH30 / 900FH10 single-turbine units
• Uses V-Series service elements (2040V for the 900 housing) — older 2040N/2020N elements do not fit; confirm micron and configuration for your system before ordering

Cross-References / Interchange:

• Service/replacement element: Racor 2040V10 (10 micron)
• Replaces: 900FH30, 900FH10 (older single-turbine units)
• Related assemblies: 751000FV10 (dual, 360 GPH), 791000FV10 (triple, 540 GPH)

Conclusion:

The Racor 900FV10 is a new single-turbine fuel filter/water separator rated at 90 GPH with 10-micron Aquabloc media. Its three-stage filtration, dual-port design, integrated shut-off valve, and clear bowl make it a reliable, compact diesel fuel-conditioning unit — and the current replacement for the 900FH-series.
