BorgWarner 179077 S300G Turbo | 1995-2006 Navistar DT466E / I530E | Replaces 1830493C91 | New

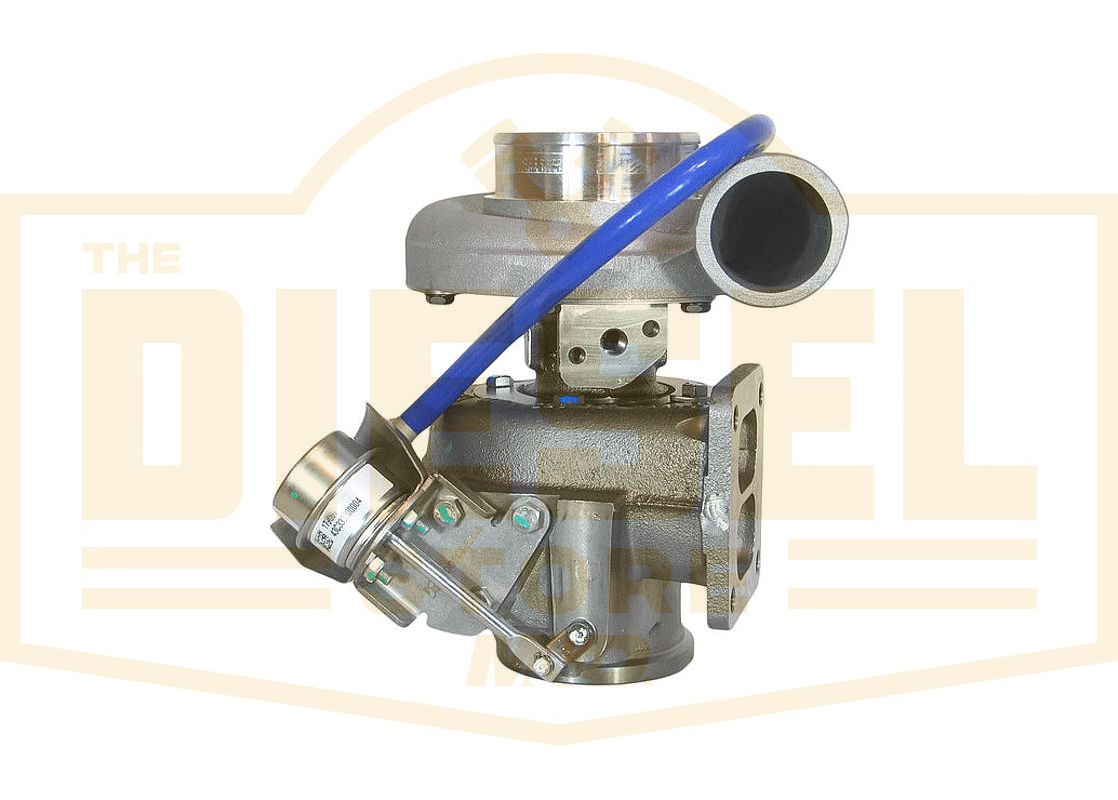

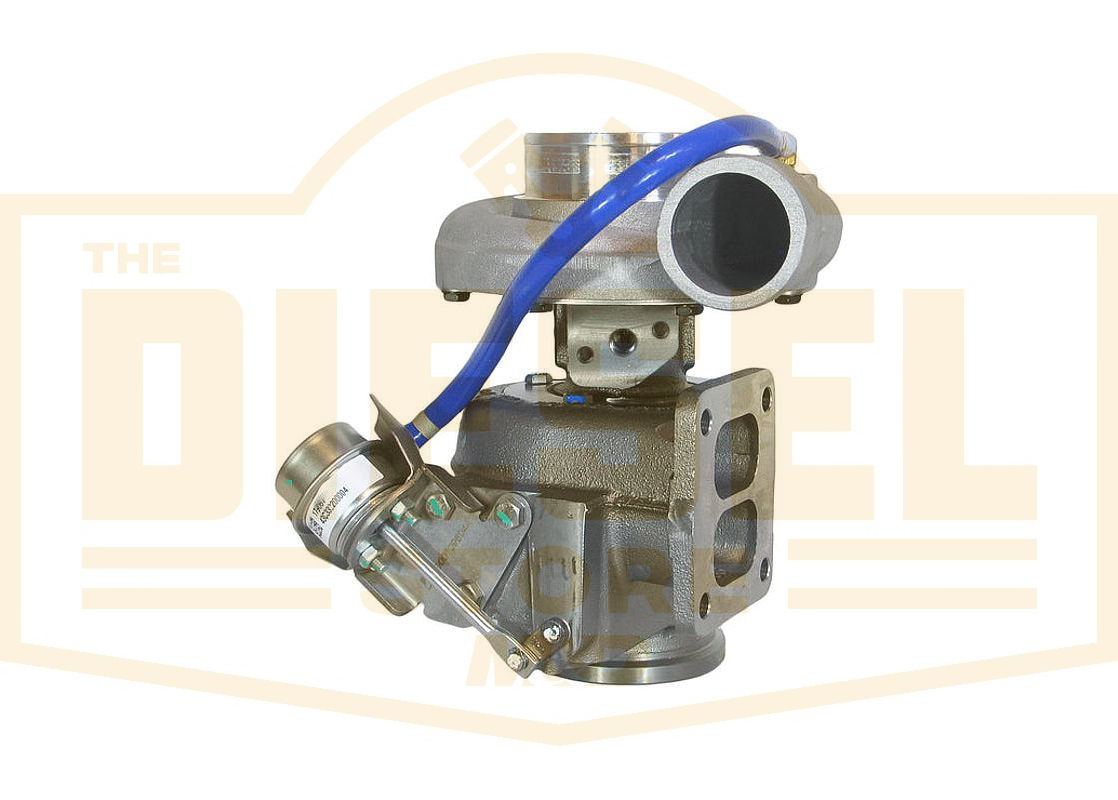

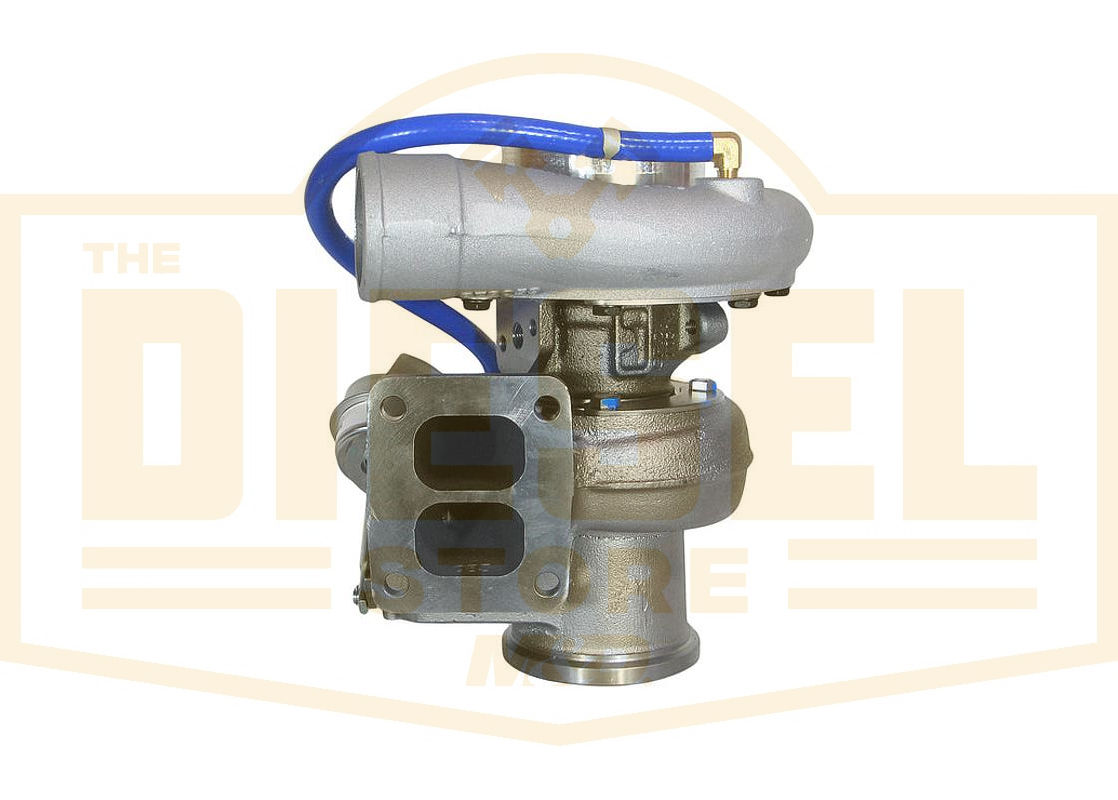

New genuine BorgWarner 179077 S300G turbocharger for 1995-2006 Navistar International DT466E and I530E 7.6L diesel engines. It replaces Navistar 1830493C91 with the same connections. This is the wastegated S300G, so match the number on your old turbo’s nameplate before ordering. The mounting gasket set is sold separately.

Key Features:

• Genuine BorgWarner S300G turbocharger, a Schwitzer design
• Wastegated, with a pneumatic wastegate actuator
• 0.83 A/R turbine housing
• Same connections as the Navistar 1830493C91 turbo it replaces

Specifications:

• Part number: BorgWarner 179077
• Brand: BorgWarner
• Condition: New
• Component type: Turbocharger, wastegated
• Turbo model: S300G
• Turbine housing: 0.83 A/R
• Wastegate actuator: Pneumatic
• Engine: Navistar International DT466E, I530E (7.6L)
• Years: 1995-2006
• Not included: Turbo mounting gasket set (sold separately)

Compatibility / Fitment:

Fits 1995-2006 Navistar International DT466E and I530E 7.6L diesel engines in International trucks.

Two hard fitment gates apply:

Match the number on your old turbo. BorgWarner builds more than one S300-family turbo for the DT466E and I530E. Each one is matched to its own set of Navistar and Garrett turbo numbers, and they are not interchangeable. We also stock a sister S300G built for a different set of Navistar numbers, and an earlier S300 for 1993-1997 engines. Read the BorgWarner, Navistar or Garrett number on your old turbo’s nameplate and match it before ordering.

Wastegated, not variable geometry. This turbo uses a pneumatic (air-operated) wastegate. Some 2003-and-later DT466 engines use a variable-geometry turbo with an electronic actuator, which is a different part. If your old turbo has an electrical connector on the actuator, this is not your turbo.

Installation: Pre-fill the bearing housing with clean engine oil and prime the oil supply line before first start. Fit new oil supply and drain gaskets, and clear any oil or debris from the intake and charge-air system left by the old turbo. Do not use liquid sealant on oil or exhaust connections. Follow the engine manufacturer’s torque specifications.

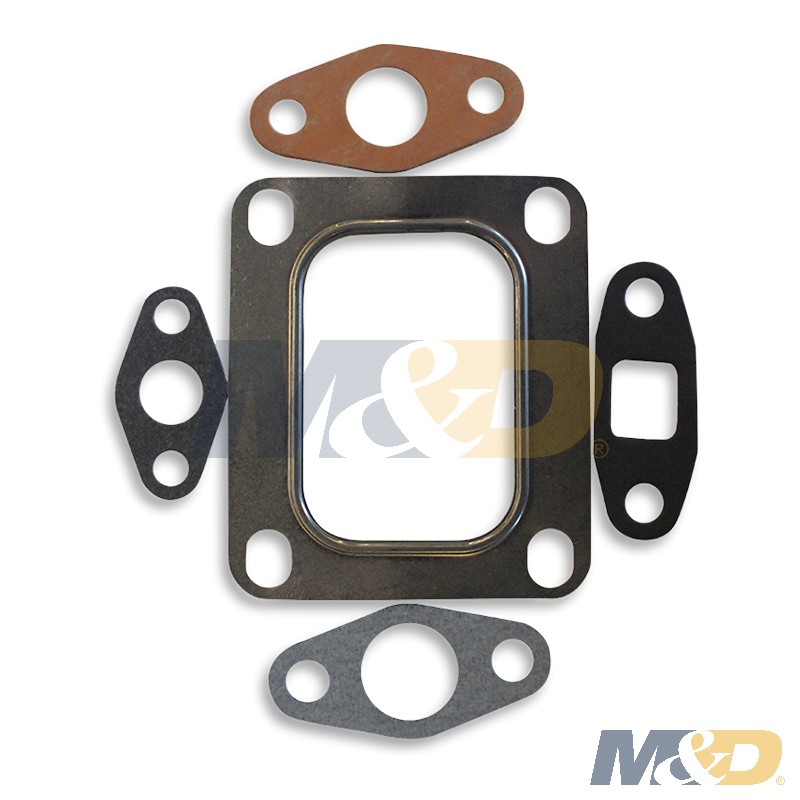

Pair with: BorgWarner S300 turbo mounting gasket set 318418, which is not included with the turbo.

Also available remanufactured: A remanufactured S300G for these engines, which we also stock.

Common interchanges: Navistar 1830493C91, 1830494C91, 1830497C91, 1825401C91, 1822233C92, 1841839C91

Conclusion:

A new BorgWarner S300G wastegated turbo for 1995-2006 Navistar DT466E and I530E engines, replacing Navistar 1830493C91. Match the number on your old turbo’s nameplate, and order the mounting gasket set separately.
