5.9 Cummins Engine Overview

The 5.9-liter Cummins diesel engine made its debut in 1989 and quickly became a benchmark for durability and performance. Originally installed in Dodge Ram pickups, this inline-six engine also powers generators, construction equipment, agricultural machines, and other industrial platforms. Known for its long lifespan, simple design, and dependable torque output, the 5.9 Cummins continues to be a trusted powerplant worldwide.

In this guide, we’ll walk through the engine’s evolution, technical specs, common issues, popular upgrades, parts diagrams, maintenance routines, and buying tips. Whether you work with Cummins engines in industrial settings or you're researching replacements for power generation, this is your complete reference.

History and Evolution of the 5.9 Cummins

The 5.9-liter Cummins engine went through three major design generations from 1989 to 2007. Each generation introduced new technologies, improved performance, and adapted to evolving emissions standards.

12-Valve P-Pump Era (1989–1998)

The original 5.9 Cummins came with a 12-valve head and a Bosch P7100 mechanical injection pump. It delivered between 160 and 215 horsepower, with torque ratings from 400 to 440 lb-ft. This generation became a favorite for its rugged simplicity and exceptional reliability. With a cast-iron block and head, mechanical injectors, and minimal electronics, the 12-valve is easy to service and modify. These traits made it a natural fit for generator and industrial equipment manufacturers who needed dependable performance in remote or demanding conditions.

24-Valve VP44 Era (1998–2002)

In 1998, Cummins updated the engine with a 24-valve head and introduced the Bosch VP44 electronic injection pump. Horsepower increased to 235–285 hp, and torque reached 460–600 lb-ft. This version allowed for better airflow and improved emissions performance. However, the VP44 pump introduced complexity and some reliability concerns, especially under high-heat environments. Still, many power generation units and industrial platforms used this version due to its stronger output.

24-Valve Common-Rail Era (2003–2007)

The final generation of the 5.9 featured a Bosch CP3 high-pressure common-rail fuel system. This allowed for more precise fuel delivery, smoother operation, and reduced emissions. Power rose to 305–345 hp and torque climbed to 610–650 lb-ft. The engine featured improved head casting, updated oil flow architecture, and more advanced ECU tuning. Although more complex, this version continues to power many generator systems and stationary equipment.

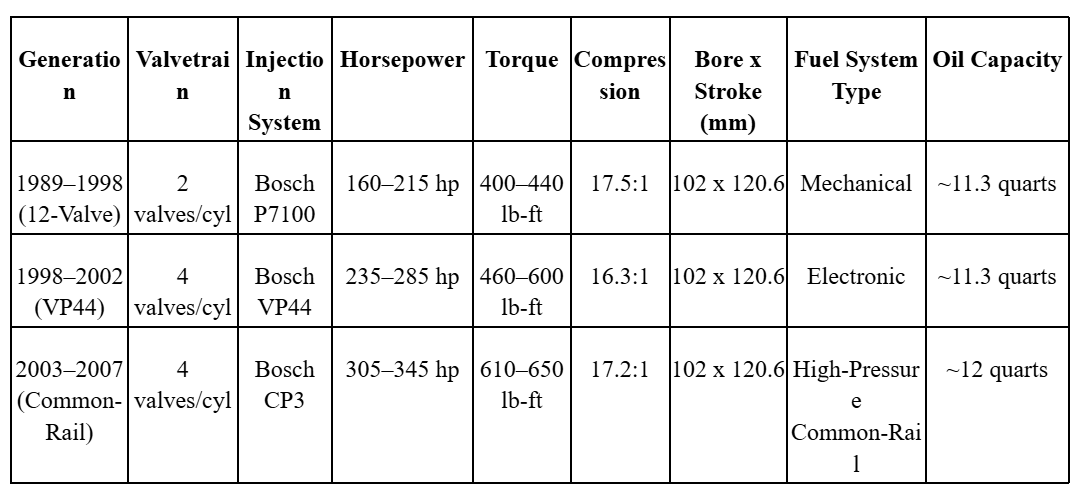

5.9 Cummins Technical Specifications by Generation

Below is a summary of the core specs across the three main 5.9 Cummins generations:

These changes brought performance improvements but also increased maintenance complexity. The 12-valve is praised for simplicity, while the common-rail offers cleaner operation with greater control.

Common Problems and Reliability Concerns

Each version of the 5.9 Cummins engine has known weak points. Here are the most frequent issues by generation:

P-Pump Drive Gear and Injector Cup Failures (12-Valve)

On high-mileage engines, the mechanical drive gear for the P-pump can wear or shift. This leads to poor timing and rough starting. Additionally, injector cups can crack, causing fuel contamination or hard starts. Using high-quality oil and replacing components on schedule helps reduce risk.

VP44 Injection Pump and Head Gasket Issues (VP44 Era)

The VP44 injection pump is sensitive to heat. Prolonged exposure leads to internal failure, causing hot-start stalling and reduced fuel delivery. Installing a VP44 cooler and ensuring fuel system priming can extend pump life. Head gasket leaks are also more common under heavy loads or high boost. Monitoring coolant levels and installing upgraded head studs can help prevent failure.

CP3 High-Pressure Rail Failures and Turbocharger Concerns (Common-Rail)

The CP3 pump can develop internal leaks or pressure regulator faults. Symptoms include hard starts and erratic idling. Turbocharger wear (e.g., CHRA failure) is also common in high-mileage units. Regular oil changes and quality filtration are key to prevention.

Aftermarket Upgrades and Performance Mods

Industrial users and engine builders often upgrade the 5.9 Cummins for longevity, fuel economy, or added power. Here are the most common upgrades:

Cold Air Intakes, Exhaust Systems & Tuners

Aftermarket air filters and high-flow intake systems improve airflow and help the engine breathe easier. Paired with a free-flowing exhaust and a custom ECM tune, these upgrades offer improved response and up to 50 hp gains. For stationary equipment, these mods improve fuel use and reduce soot buildup.

Upgraded Injectors, Turbos & Head Stud Kits

Stage 1–3 injectors boost fueling capacity, which works well with upgraded turbochargers (e.g., 63 mm or 67 mm). For engines making over 400 hp, ARP head studs help keep the head gasket sealed. These are common mods in both generator tuning and custom builds.

Internal Reinforcements

For extreme applications, engine builders may upgrade camshafts, pushrods, lifters, and bottom-end bearings. While costly, these upgrades help sustain performance under constant high-load conditions often seen in power generation and heavy industrial use.

5.9 Cummins Parts & Diagrams

Finding accurate diagrams is essential for repair and service. Cummins and aftermarket resources offer exploded views for key subsystems.

Fuel System Diagram and Filter Housing Layout

12-valve engines use inline pumps with separate lift pumps. VP44 and CP3 models combine injection and lift functions. Filter housings vary—early engines have spin-on types, while later models feature canister assemblies. Filter head assemblies are serviceable and easy to swap.

Engine Wiring Diagram and Fuse Box Locations

Each generation has different wiring. The 12-valve is nearly all mechanical. The VP44 introduces electronic control modules and injector wiring. The CP3 system includes advanced sensors and glow plug relays. Understanding the fuse locations and relay maps helps prevent electrical issues during startup.

Oil Filter and Cooling System Layout

Oil filter housings are block-mounted on all models. The cooling system includes thermostat housings, coolant bypass ports, and turbocharger coolant feeds. Proper coolant routing ensures even head cooling and helps prevent gasket failure.

Buying Guide: Finding a 5.9 Cummins Engine

Used 5.9 Cummins engines remain in demand, especially for generators, stationary power systems, and industrial use.

Inspecting a Used 12-Valve Engine

Check injector lines for leaks or cracks. Listen for knocks on cold starts. Use a straight edge to test head flatness. Inspect the pickup screen for metal shavings. Review service history for oil change frequency and valve lash maintenance.

Evaluating a VP44 or Common-Rail Engine

VP44 pumps should crank and start clean when hot. If they hesitate or stall, the pump may be heat-soaked. Check for rail pressure DTCs on common-rail models. Inspect for signs of turbocharger bearing failure, injector leak-back, or poor priming.

Maintenance and Service Tips

Proactive maintenance is key to a long engine life.

Recommended Oil Types and Change Intervals

12-valve and VP44 engines typically use 15W-40 CJ-4 oil. Common-rail models may benefit from 5W-40 CK-4 synthetic oil. Oil changes should occur every 5,000 miles on older units and 7,500–10,000 miles on newer ones with premium filters.

Valve Lash Adjustment and Injector Cup Maintenance

12-valve engines require valve lash checks every 15,000–20,000 miles. Loose lash causes noise and efficiency loss. Injector cups should be inspected for cracks and leaks. While common-rail engines use hydraulic lash, it’s still wise to inspect rockers and pushrods.

Cooling System and Head Gasket Prevention

Flush coolant every 50,000 miles. Use 50/50 ethylene glycol mixes to avoid scaling and overheating. Periodically check gasket surfaces, torque head studs, and inspect intake gaskets for leaks.

Final Thoughts

The 5.9-liter Cummins engine remains one of the most respected diesel platforms in use today. From its early 12-valve mechanical simplicity to the high-tech common-rail designs, it serves both mobile and stationary roles with excellence. In generators, compressors, and industrial applications, its reliability and power density continue to set standards.

With proper maintenance, smart upgrades, and an understanding of its strengths and weak points, the 5.9 Cummins can deliver decades of dependable service.

Even now, mechanics and industrial operators rely on this engine for its proven track record. Whether you're sourcing parts, rebuilding an old unit, or integrating one into a new system, the 5.9 Cummins stands as a benchmark for diesel durability. Use this guide to make informed choices about upgrades, troubleshooting, and long-term support.
