Fuel Injection System Components
Fuel injection systems are the lifeblood of modern engines, ensuring precise fuel delivery for optimal performance, efficiency, and emissions control. These systems are made up of several interdependent fuel injection components, each playing a vital role in maintaining the engine's functionality. Understanding the main components of a fuel injection system and their functions is essential for technicians.
In this article, we’ll break down the components of the fuel injection system, explore their roles, and address common issues that can arise, particularly in electronic fuel injection components.
Main Components of a Fuel Injection System
The fuel injection system components work together seamlessly to regulate and deliver fuel to the engine. Here’s a closer look at the main components of a fuel injection system:

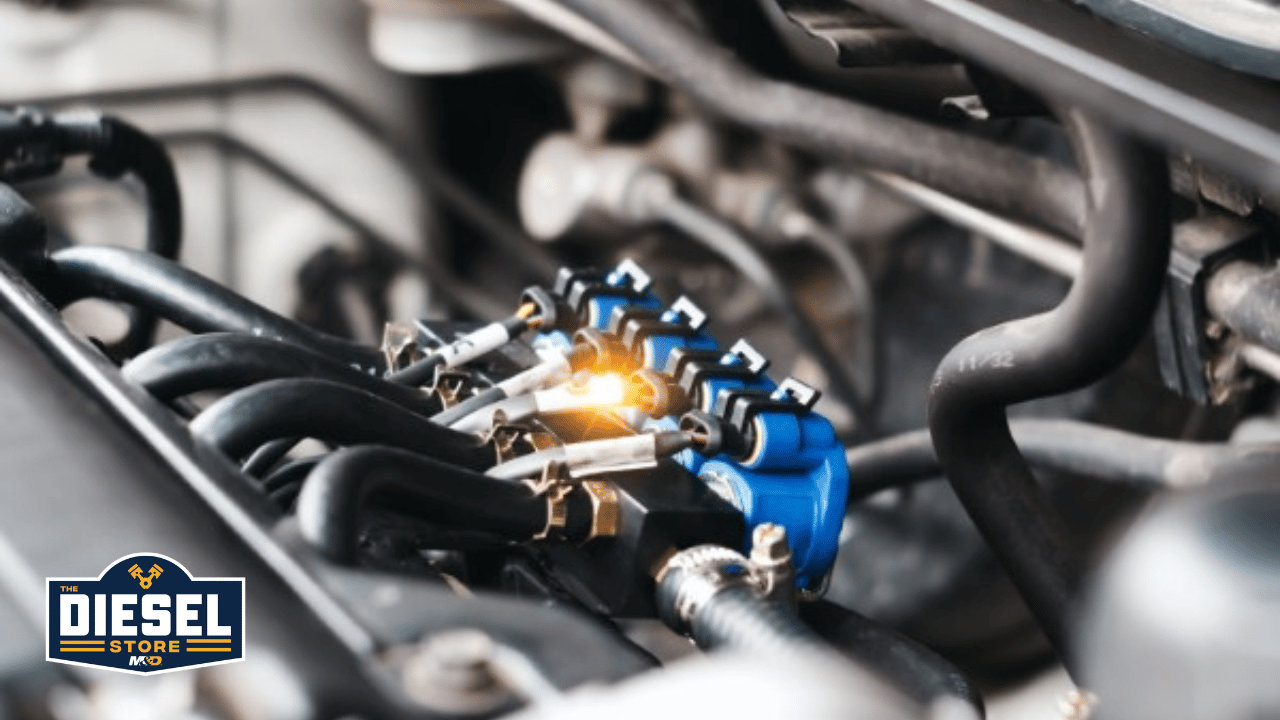

Fuel Injectors
Fuel injectors are critical parts of a fuel injection system, responsible for delivering fuel directly into the engine's combustion chamber or intake manifold. They atomize the fuel into a fine mist, ensuring efficient combustion and optimal engine performance.
Types of Fuel Injectors:
- Mechanical Fuel Injectors: Found in older systems, these injectors rely on mechanical pressure or cam-driven mechanisms to spray fuel. While effective, they lack the precision of modern systems.
- Electronic Fuel Injectors: Controlled by the Electronic Control Unit (ECU), these injectors offer precise fuel delivery tailored to engine requirements. They enhance efficiency, improve fuel economy, and reduce emissions.
Modern fuel injectors are designed to withstand high pressures and operate at incredible speeds, ensuring seamless fuel delivery even under demanding conditions.
Fuel Pump
The fuel pump is one of the major components of a fuel injection system. Its primary function is to supply fuel from the tank to the fuel rail under consistent pressure. Without sufficient pressure, injectors cannot atomize fuel effectively.
Types of Fuel Pumps:
- Mechanical Pumps: Typically used in carbureted engines, these pumps operate at lower pressures and are less common in modern engines.
- Electric Pumps: Found in most fuel-injected systems, electric pumps deliver high-pressure fuel to meet the demands of advanced engines.
Fuel pumps are critical for preventing issues like stalling, poor acceleration, or engine misfires. Regular maintenance, including checking pressure levels, can prolong their lifespan.
Fuel Rail
The fuel rail serves as a distribution channel, delivering fuel from the pump to the injectors. Acting as a central hub, it ensures that each injector receives the correct amount of fuel.
Functions of the Fuel Rail:
- Pressure Regulation: Maintains consistent pressure across all injectors to ensure even fuel delivery.
- Support for High-Pressure Systems: In modern engines, fuel rails are built to handle high-pressure fuel delivery, which is essential for achieving optimal combustion.
A properly functioning fuel rail is vital for achieving uniform fuel distribution and maximizing engine efficiency.
Electronic Control Unit (ECU)
The ECU is the brain of the fuel injection system. It processes data from various sensors to control fuel delivery, injection timing, and air-fuel ratios.
Key Roles of the ECU:
- Adjusts fuel delivery based on engine load, speed, and temperature.
- Enhances fuel efficiency by maintaining the ideal air-fuel mixture.
- Reduces emissions by optimizing combustion processes.
Advanced ECUs can also diagnose issues within the fuel injection system, making them indispensable for modern engines.
Sensors (Supporting Components)
Sensors play a crucial role in providing real-time data to the ECU, enabling precise control over fuel injection. Essential sensors include:
These sensors are vital for the efficient operation of both gasoline and diesel fuel injection systems.
Fuel Pressure Regulator
The fuel pressure regulator maintains consistent pressure within the system. It prevents problems like fuel starvation or over-delivery, both of which can compromise engine performance.
How It Works:
- Balances fuel flow to meet engine demands.
- Redirects excess fuel back to the tank via return lines.
A malfunctioning fuel pressure regulator can lead to issues like hard starting, poor acceleration, or fuel leaks.
Fuel Filters
Fuel filters are protective components that remove impurities from the fuel before it reaches the injectors. Contaminants like dirt, rust, or debris can clog injectors and damage other sensitive components.
Benefits of Regular Maintenance:
- Prolongs the lifespan of fuel injection components.
- Enhances overall engine performance.
Replacing fuel filters at recommended intervals is a simple yet effective way to maintain system integrity.
Other Supporting Components
Additional parts of the fuel injection system include:
- Return Lines: Transport excess fuel back to the tank, aiding in pressure regulation and system cooling.
- Fuel Tank: Stores fuel and provides a steady supply to the pump.
- Wiring Harnesses: Connects various components to the ECU, enabling seamless communication and control.
Though supplementary, these components play essential roles in ensuring the system operates efficiently.
Common Issues in Fuel Injection Components
Despite their advanced design, fuel injection components are not immune to wear and tear. Here are some common issues and their potential solutions:
Clogged Injectors
Over time, injectors can become clogged due to impurities in the fuel. This can lead to:
- Reduced engine performance.
- Poor fuel economy.
- Misfires or rough idling.
Solution: Regularly use fuel system cleaners and ensure timely injector cleaning during maintenance.
Malfunctioning Fuel Pumps
A failing fuel pump can cause inconsistent pressure, resulting in:
- Stalling or hard starting.
- Loss of power under load.
Solution: Check fuel pressure regularly and replace faulty pumps promptly to avoid further damage.
Faulty Sensors
Sensors are prone to damage or wear, which can disrupt ECU operations and lead to:
- Incorrect air-fuel ratios.
- Increased emissions.
Solution: Perform regular diagnostics to identify and replace faulty sensors.
Proactively addressing these issues can extend the lifespan of the fuel injection system and maintain optimal engine performance.
Conclusion
The components of a fuel injection system are intricately designed to deliver precise amounts of fuel for optimal engine performance. From injectors and pumps to sensors and filters, each part plays a vital role in maintaining efficiency, reducing emissions, and ensuring longevity.
Whether you’re working on a gasoline or diesel fuel injection system, understanding the main components and their functions can help diagnose issues and enhance performance. By addressing common problems and ensuring regular maintenance, you can keep your engine running smoothly for years to come.
