Diesel Engine Components: Key Parts and Functions

Diesel engines are widely recognized for their power, durability, and fuel efficiency, making them a preferred choice for industrial and commercial applications. Understanding the components of a diesel engine is essential for anyone involved in their maintenance, repair, or operation. This article will walk you through the main components of a diesel engine, explain how these parts work together, and provide guidance on maintaining these parts to ensure longevity and peak performance.

Diesel engines contain several key components, each with a distinct role in the process of combustion and power generation. Let’s look closer at these basic diesel engine components and their functions.

The engine block is the foundation of the diesel engine, housing many of the other major components of a diesel engine. Made typically from cast iron or aluminum, it contains the cylinders where combustion occurs. Within the engine block are passageways for coolant and oil, which regulate temperature and lubricate moving parts. The engine block is designed to withstand immense heat and pressure, making it one of the most durable parts of the diesel engine.

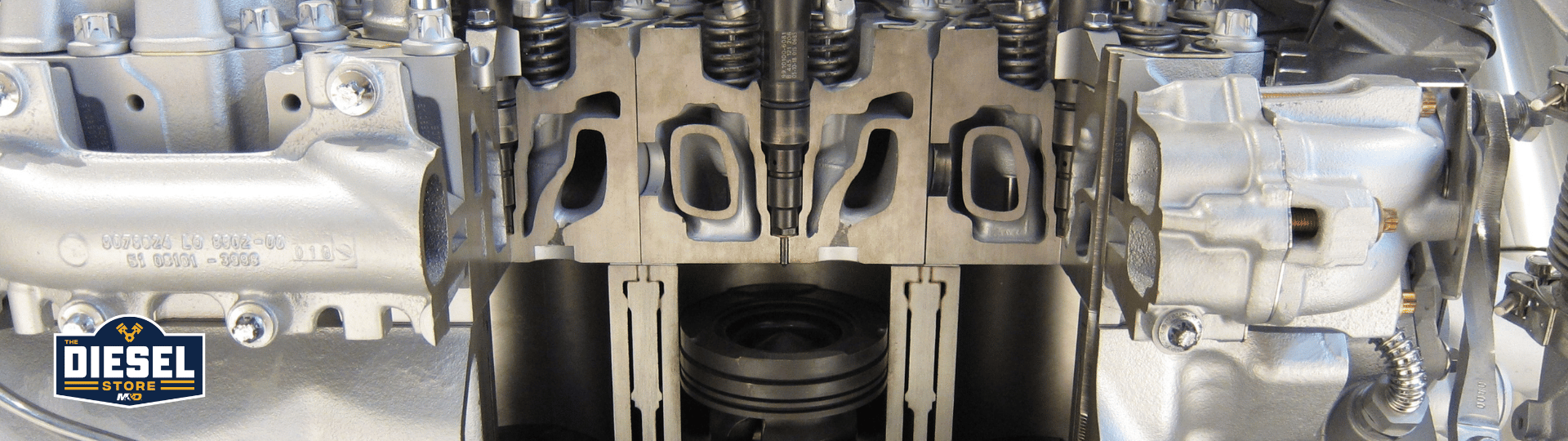

The cylinder head sits atop the engine block and encloses the tops of the cylinders. It forms the combustion chamber and contains passages for air intake and exhaust gases. The cylinder head also houses parts like the valves and fuel injectors. In many diesel engine components diagrams, the cylinder head is shown as a key connection point between other engine parts, particularly in managing the flow of gases and fuel.

The crankshaft is responsible for converting the up-and-down motion of the pistons into rotational energy, which powers the engine. Located at the bottom of the engine block, the crankshaft connects to each piston via the connecting rod. The rotating motion of the crankshaft ultimately drives the engine’s output.

Each piston fits within a cylinder and moves up and down as fuel ignites. As combustion occurs, the pistons are forced downward, creating energy. Pistons endure high temperatures and intense pressure, requiring them to be made from materials capable of withstanding these extreme conditions. Pistons are also often highlighted in diesel engine components and functions breakdowns because of their central role in energy production.

The fuel injector is part of the diesel engine fuel system components and is crucial for delivering precise amounts of fuel into the combustion chamber. Unlike gasoline engines, which mix fuel with air prior to combustion, diesel engines inject fuel directly into the chamber. This injection is timed to occur just as the air inside the cylinder is compressed and heated, leading to efficient combustion.

Valves control the intake of air and exhaust gases in and out of the cylinders. Diesel engines usually have intake and exhaust valves that open and close to allow the entry of fresh air and the exit of exhaust gases. Valves must be precisely timed to ensure the engine functions smoothly, and they play an essential role among components of diesel engine fuel system elements.

The camshaft operates the intake and exhaust valves, ensuring they open and close at the correct times. This component is driven by the crankshaft through a timing belt or chain and coordinates the airflow into and out of the cylinders. Proper timing from the camshaft is critical for engine efficiency, as it directly affects the combustion cycle.

The connecting rod links the piston to the crankshaft. As the piston moves up and down, the connecting rod transfers this motion to the crankshaft, converting linear motion into rotational motion. Connecting rods need to withstand high stress, as they are constantly in motion within the engine’s high-pressure environment.

Diesel engines rely on a precise sequence of operations where each component interacts seamlessly with others to generate power. For example, the camshaft controls the timing of the valves, ensuring the engine receives fresh air and expels exhaust at the right moments. This synchronization allows the fuel injector to deliver fuel directly into the heated cylinder just as the intake valves close. This highly coordinated process is often illustrated through a diesel engine components diagram, where the timing and motion of each part are clearly represented. The crankshaft and pistons, in particular, showcase the dynamic movement that powers the engine, transforming fuel combustion into mechanical energy that drives the engine output. This integrated operation is what makes diesel engines so efficient and powerful.

Final Thoughts on Diesel Engine Components

Understanding diesel engine components and how they work together is essential for achieving reliable performance, efficiency, and long service life. Each part, from the engine block and pistons to the fuel injectors and valve system, plays a critical role in the combustion process and power delivery. With proper knowledge and regular maintenance, diesel engines can continue to deliver the durability, fuel efficiency, and strength they are known for, even in the most demanding applications.
