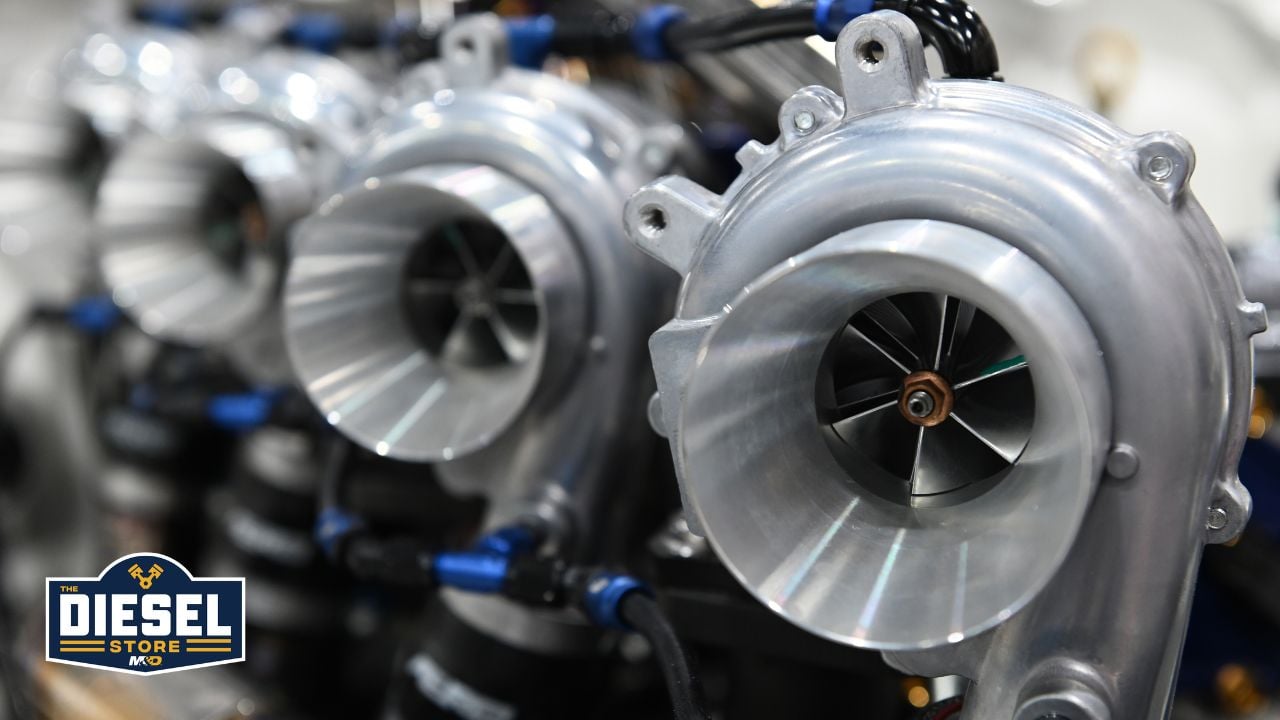

Variable Geometry Turbocharger - What is a VGT Turbo?
Modern engines are constantly evolving to strike a balance between power, efficiency, and emissions. Turbochargers play a huge role in achieving this balance, and among the most advanced of them is the variable geometry turbocharger (VGT).
But what exactly is a VGT turbo? Why are so many diesel trucks and performance vehicles equipped with them today?
In this article, we’ll explore the ins and outs of variable geometry turbochargers—how they work, what components they include, their pros and cons, and how they compare to standard turbos. We’ll also look at common issues and help you determine whether a VGT is the right upgrade for your vehicle. Let’s dive in.
What Is a Variable Geometry Turbocharger (VGT)?
A variable geometry turbocharger, often shortened to VGT, is a modern turbocharger design that features movable vanes within the turbine housing. These vanes can open and close depending on engine speed and load, adjusting the flow of exhaust gases to maximize turbo efficiency across the RPM range.
Think of a traditional turbocharger as a fixed water slide—you’re always going down at the same angle. A VGT, by contrast, changes the slide’s shape as you go down, adapting to your speed for a smoother ride.
This makes the VGT turbo exceptionally versatile. It performs well at low RPMs when torque is needed, and continues to deliver efficient power at higher speeds.
What is variable geometry turbocharger technology used for? Originally developed for diesel engines—where maintaining torque at low RPMs is essential—variable-geometry turbochargers are now also used in gasoline engines, especially those in performance or luxury segments. The ability to fine-tune boost pressure in real-time gives drivers a seamless mix of responsiveness and efficiency.
In short, the variable turbine geometry turbocharger offers the best of both worlds: performance and practicality.
How Does a Variable Geometry Turbo Work?
At the heart of every VGT turbo is a set of adjustable vanes arranged around the turbine wheel. These vanes pivot to either restrict or increase the exhaust flow, effectively managing the speed at which the turbine spins.
Here's how it works:
- Low RPMs: The vanes narrow the passage for exhaust gases, increasing their velocity and spinning the turbine faster. This generates boost sooner and reduces lag.
- High RPMs: The vanes open wide, allowing exhaust gases to pass more freely, preventing excessive boost and maintaining engine efficiency.
This real-time adjustment is handled by the engine control unit (ECU), which constantly reads data from sensors and tells the variable geometry turbocharger actuator how to position the vanes.
In comparison, a fixed geometry turbo has a single, unchanging vane setup. It’s simpler and cheaper but only efficient at a narrow RPM band. A VGT, on the other hand, acts like multiple turbos in one—small when you need fast response, large when you need top-end power.
If you’ve ever asked, how does a variable geometry turbocharger work, this is your answer: it’s all about adjustable vanes controlled by precise actuator movements under ECU supervision.
Key Components of a VGT System
Understanding the components of a variable geometry turbocharger system helps demystify how it operates. Each part plays a specific role:
- Turbine Housing: This contains the turbine wheel and the variable vanes. It directs exhaust gas through the turbocharger to spin the turbine.
- Variable Vanes: These are movable blades that can change angle to control the amount and speed of exhaust entering the turbine. Their ability to change position is what gives the VGT its name.
- Actuator: The variable geometry turbocharger actuator is the muscle of the system. It physically adjusts the vanes' angle. Modern actuators are often electronic, offering precision and faster response than older pneumatic versions.
- ECU (Engine Control Unit): The brain behind the system. It uses real-time engine data to calculate the optimal vane position and sends commands to the actuator.
- Sensors: These provide the ECU with vital feedback on exhaust pressure, temperature, and other performance metrics. Without accurate data, the system can’t function correctly.
Sometimes, faults like engine variable geometry turbocharger actuator 1 errors or variable geometry turbocharger actuator software - abnormal update rate show up on diagnostic tools. These often indicate communication issues between the ECU and actuator or vane position errors.
A failure in any one of these components can lead to underboost, overboost, poor fuel economy, or limp mode. Regular maintenance and proper diagnostics are key to long-term reliability.
Advantages of Variable Geometry Turbochargers
So, why choose a variable turbocharger geometry system over a traditional setup? Here are the standout advantages:
- Reduced Turbo Lag: Because the vanes can close at low RPMs, VGTs deliver boost quickly and eliminate the sluggish response many associate with turbo engines.
- Better Low-End Torque: This makes them perfect for towing, hauling, or stop-and-go driving. You get immediate power when you step on the pedal.
- Improved Fuel Efficiency: By optimizing exhaust flow and boost pressure, VGTs reduce wasted energy, helping your engine run leaner and cleaner.
- Lower Emissions: With more complete combustion, variable geometry turbochargers help meet strict emissions regulations, especially in diesel engines.
- Adaptability: A VGT can act like a small turbo when you need fast spooling and a large turbo when cruising—offering the benefits of both without needing multiple turbos.
These advantages make VGTs a preferred option in applications ranging from compact SUVs to heavy-duty trucks.
Disadvantages and Common Issues With VGTs
Despite their benefits, variable geometry turbochargers aren’t perfect. Here are the main drawbacks:
- Higher Cost: The technology is complex, and that translates to a more expensive unit compared to fixed turbos.
- Mechanical Complexity: With more moving parts and electronics, there’s a greater chance of something going wrong.
- Vane Clogging: In diesel engines especially, soot and carbon deposits can cause the vanes to stick, leading to performance issues or failure.
- Actuator Failures: The variable geometry turbocharger actuator is sensitive. If the software or internal gears fail, boost control may be lost.
- Diagnostic Challenges: Because of their complexity, diagnosing problems in a VGT system often requires specialized tools and knowledge.
These issues can increase the cost of ownership. For example, cummins variable geometry turbocharger problems often include stuck vanes or actuator malfunctions, which can cost several hundred dollars to fix—or more if the turbo needs replacing.
Still, when maintained properly, a VGT system can be reliable and high-performing over the long haul.
Where Are Variable Geometry Turbochargers Used?
The popularity of VGTs has grown across vehicle types and engine platforms. You’ll commonly find them in:
- Diesel Trucks: Heavy-duty pickups and commercial trucks rely on VGTs for towing power and fuel efficiency.
- Passenger Vehicles: Many diesel sedans and SUVs feature VGTs for smooth and efficient city and highway driving.
- Gasoline Performance Cars: High-end vehicles with turbocharged gas engines now use VGTs for quicker throttle response.
- Industrial & Off-Road Equipment: Heavy machinery benefits from the torque and efficiency gains offered by variable geometry turbochargers.
Leading manufacturers like Garrett variable-geometry turbocharger and BorgWarner variable geometry turbocharger supply these systems to major OEMs globally.
What Does a VGT Actuator Do?
The actuator is the unsung hero of the VGT system. Its job is to adjust the position of the vanes based on real-time signals from the ECU.
There are two types:
- Electronic Actuators: Offer fast, precise control. Found in modern diesel and gas engines.
- Pneumatic Actuators: Simpler and more affordable, but less accurate and responsive.
When the actuator fails, it can lead to erratic boost levels or even limp mode. Common symptoms of variable geometry turbocharger actuator failure include:
- Lack of power
- Check engine light
- Irregular turbo noise
- Diagnostic codes related to vane position
Tools like scan readers can detect engine variable geometry turbocharger actuator 1 errors and help diagnose problems early.
Diagrams and Animation: How the VGT System Works
Visuals are key to understanding how a VGT works. A variable geometry turbocharger diagram usually includes:
- Turbine wheel
- Exhaust flow paths
- Vane positions (open/closed)
- Actuator linkage
To understand how a variable geometry turbocharger works, picture the internal vanes inside the turbine housing acting like adjustable blinds. These vanes pivot to control the amount and speed of exhaust gas hitting the turbine wheel, which in turn controls how much boost pressure the turbo generates.
Here’s how the process works step-by-step:
- Engine Starts / Low RPM: At idle or low engine speed, the vanes close to create a narrow pathway for exhaust gases. This increases exhaust velocity and helps spin the turbine quickly, which reduces turbo lag and delivers low-end torque.
- Moderate Acceleration: As the engine speed increases, the vanes begin to open slightly. This maintains efficient airflow while preventing excessive pressure buildup.
- High RPM / Heavy Load: At higher speeds or under heavy acceleration, the vanes open fully to allow a greater volume of exhaust gases to pass through. This prevents overboost and keeps the engine running efficiently.
- Real-Time Adjustments: Throughout this process, the engine control unit (ECU) constantly monitors engine conditions (such as RPM, throttle position, exhaust pressure, and load). It uses this data to signal the actuator, which adjusts the vane position instantly to match driving conditions.
This adaptability allows the turbo to behave like a small turbo at low speeds—spooling up quickly—and like a large turbo at high speeds—providing maximum airflow without choking the engine.
In essence, a variable geometry turbocharger fine-tunes itself constantly, ensuring that the engine always operates in its optimal boost range.
Conclusion: Is a VGT Turbo Right for Your Engine?
To wrap things up, the vgt variable geometry turbocharger is one of the most advanced and versatile turbo technologies on the market. It offers unmatched performance across the RPM range, especially when tuned and maintained properly.
Use a VGT if you need:
- Strong low-end torque
- Smoother acceleration
- Better fuel economy
- Emissions compliance
Be cautious if you’re concerned about:
- Upfront cost
- Long-term maintenance
- Potential actuator issues
A variable geometry turbocharger is an investment in efficiency and driving quality. If you're considering a turbo upgrade or replacement, consult a trusted mechanic who understands the variable geometry turbocharger price, parts availability, and fitment for your engine.
