What is a Cylinder Head?

The cylinder head is a crucial component in an internal combustion engine, playing a vital role in engine efficiency, power output, and durability. Positioned at the top of the engine block, it houses key cylinder head components responsible for fuel-air mixture intake, exhaust gas expulsion, and heat dissipation. Understanding what is a cylinder head and its function is essential for vehicle maintenance and engine performance.

A cylinder head is the section of the engine that sits atop the cylinders, sealing them with a head gasket. It forms the combustion chamber along with the piston and cylinder walls. In addition to sealing the chamber, it houses several cylinder head components, including valves, camshafts, and spark plugs.

The cylinder head in a car engine is responsible for controlling the intake of air and fuel and the release of exhaust gases. As the engine operates, the engine cylinder head ensures that the combustion process is properly contained while allowing the engine to breathe efficiently. It also contributes to cooling by allowing coolant to circulate through its passageways, preventing overheating.

Sealing the Combustion Chamber

One of the primary functions of a cylinder head is to create a tight seal over the combustion chamber. The head gasket, positioned between the engine block and the cylinder head, prevents leaks of coolant, oil, and combustion gases. A well-sealed combustion chamber is essential for maintaining engine compression and efficiency.

The cylinder head assembly parts include vital components such as the camshaft, valves, spark plugs, and fuel injectors. These engine head components work together to regulate fuel combustion, engine timing, and power output. Without the complete cylinder head, an engine would be unable to function.

The cylinder head material is typically aluminum or cast iron, both of which efficiently conduct heat. The cylinder head in a car engine is designed with coolant passageways to allow fluid to circulate and regulate temperature, preventing overheating and ensuring optimal engine performance.

The cylinder head engine manages the intake of the air-fuel mixture and the expulsion of exhaust gases through its intake and exhaust valves. These cylinder head components ensure proper combustion, allowing the engine to generate power efficiently.

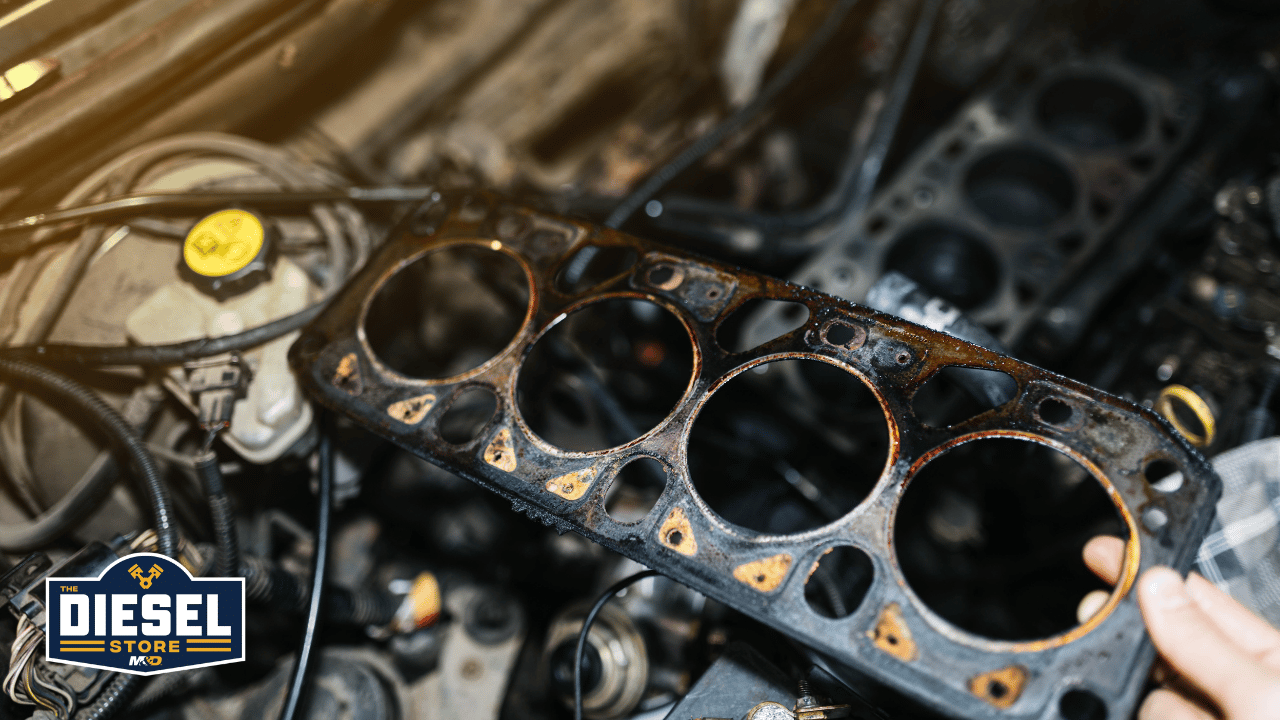

The head gasket is a critical cylinder head component that provides a seal between the cylinder head and engine block. It prevents oil and coolant leaks and maintains proper combustion pressure. A failing head gasket can lead to severe cylinder head problems such as overheating or loss of compression.

The camshaft controls the opening and closing of the intake and exhaust valves in a cylinder head assembly. Proper camshaft function is necessary to maintain engine timing and performance.

The cylinder head houses intake and exhaust valves, which regulate airflow in and out of the combustion chamber. Proper valve operation ensures efficient combustion and prevents power loss.

Spark plugs ignite the fuel-air mixture inside the combustion chamber. They are seated in the cylinder head small engine and are essential for smooth engine performance.

Fuel injectors deliver precise amounts of fuel into the combustion chamber, ensuring efficient burning and power generation. They are critical cylinder head parts that affect fuel efficiency and emissions.

Common Cylinder Head Issues

A cracked cylinder head occurs due to overheating, material fatigue, or manufacturing defects. Cracks can lead to oil or coolant leaks and result in engine failure if not addressed promptly.

Excessive heat can cause a cylinder head to warp, leading to an improper seal between the engine cylinder head and the engine block. This can cause compression loss and coolant leaks, affecting engine performance.

Leaks in a cylinder head car may occur due to a faulty head gasket or cracks in the head itself. These leaks can lead to coolant loss, oil contamination, and overheating.

Replacing a cylinder head is a significant repair that involves both parts and labor costs. The decision to replace a cylinder head instead of repairing it depends on factors such as the extent of the damage, the type of engine, and the overall condition of the vehicle.

1. Material of the Cylinder Head

The material of the cylinder head components plays a major role in determining replacement costs. Aluminum cylinder heads are lightweight and commonly used in modern engines, but they are more prone to warping and cracking under extreme temperatures. Cast iron cylinder heads, on the other hand, are more durable but heavier. Because aluminum heads require specialized welding and machining, they tend to be more expensive to repair or replace than cast iron ones.

2. Extent of the Damage

Not all cylinder head problems require a full replacement. Some minor issues, such as a worn-out head gasket, can be resolved through resurfacing or replacing just the gasket itself. However, severe cracks in the engine head components, especially those that extend to coolant or oil passageways, often necessitate replacing the complete cylinder head rather than attempting a repair.

3. Labor Costs

Labor costs depend on the complexity of the engine. In some vehicles, the cylinder head in a car engine is relatively easy to access, leading to lower labor costs. However, in vehicles with overhead camshaft engines, disassembling the cylinder head components can be labor-intensive, driving up costs.

Labor time estimates: Standard cylinder head replacement: 6 to 10 hours High-performance or turbocharged engines: 10+ hours Some diesel engines require more extensive disassembly, increasing labor costs

4. Type of Vehicle & Engine

The make and model of the vehicle also play a role in the cost of a cylinder head replacement. For example:

On average, cylinder head replacement can range from $500 to $2,000, depending on the severity of the damage and labor costs.

Final Thoughts

The cylinder head is one of the most important components of an internal combustion engine, directly affecting performance, efficiency, and reliability. By sealing the combustion chamber, managing airflow, and dissipating heat, it ensures smooth and efficient engine operation. Understanding how the cylinder head works, recognizing common issues, and knowing when repair or replacement is necessary can help prevent serious engine damage and extend the overall lifespan of the engine.
